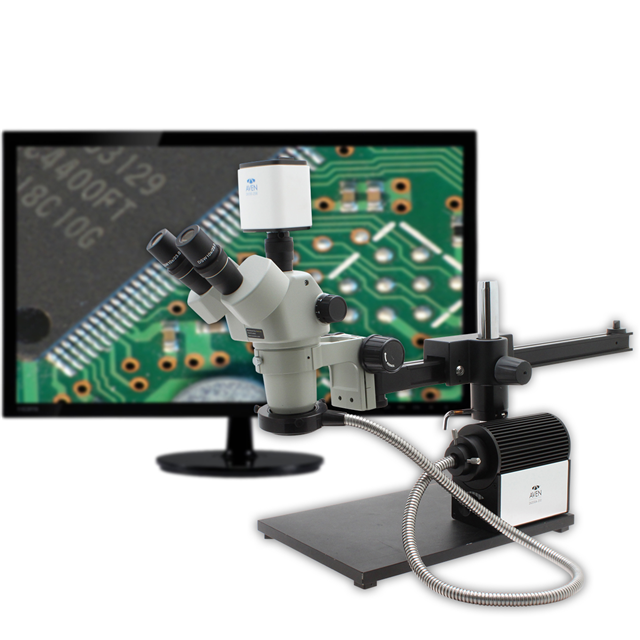

Specification	26800B-373-13-PRO

Camera Sensor Size	0.35714285714285715 in
Camera Type	CMOS
Illumination	Fiber Optic
Illumination Power	24 W
Includes	Ring Light, Mount, Cable, Adapter, Microscope, Stand, Arm, Monitor
Interface	USB, HDMI
Magnification Range (Max)	135 x
Magnification Range (Min)	21 x
Type	Stereo Zoom (Trinocular), Microscope
Working Distance	3.3 in

26800B Series

Part	Type	Includes	Field of View (Maximum Linear)	Field of View (Minimum Linear)	Working Distance	Magnification Range (Max)	Magnification Range (Min)	Illumination	Weight	For Use With/Related Products	Base Size Length	Base Size Width	Arm Length	Camera Type	Illumination Power	Interface	Features	Magnification Range
Aven Tools 26800B-373-1	Microscope Stereo Zoom (Binocular) Stereo Zoom (Trinocular)	Adapter Focus Mount Ring Light Stand	1.35 \	0.14 \	4.25 in	50 x	6.75 x	LED
Aven Tools 26800B-351	Microscope Stereo Zoom (Binocular)	Dust Cover Rubber Eye Guards Tension Pin			3.3 in	135 x	20 x	LED	15 lbs
Aven Tools 26800B-550-PCL	Arm Articulating									Microscope	4.09 in	3.03 in	31.5 in
Aven Tools 26800B-250	Microscope Stereo Zoom (Binocular)		0.79 "	0.05 "	2.87 in	75 x	11 x	LED						CMOS
Aven Tools 26800B-552	Arm Articulating									Digital Microscopes Monitors			23.6 in
Aven Tools 26800B-373-10	Microscope Stereo Zoom (Binocular)	Microscope Monitor Stand				50 x	6.7 x	Fiber Optic LED							24 W	USB
Aven Tools 26800B-521-207	2.91" ID LED Ring Light																Focus Mount
Aven Tools 26800B-373-13	Microscope Stereo Zoom (Binocular)	Cable Microscope Monitor Stand				135 x	21 x	Fiber Optic LED							24 W	USB
Aven Tools 26800B-455-10	Eyepiece Focusing with Scale									SPZ Series								10 x
Aven Tools 26800B-521-517	Focus Mount									DSZ NSW SPZ SSZ Series Microscopes			9.6 in
