26800B-351

Active

Aven Tools

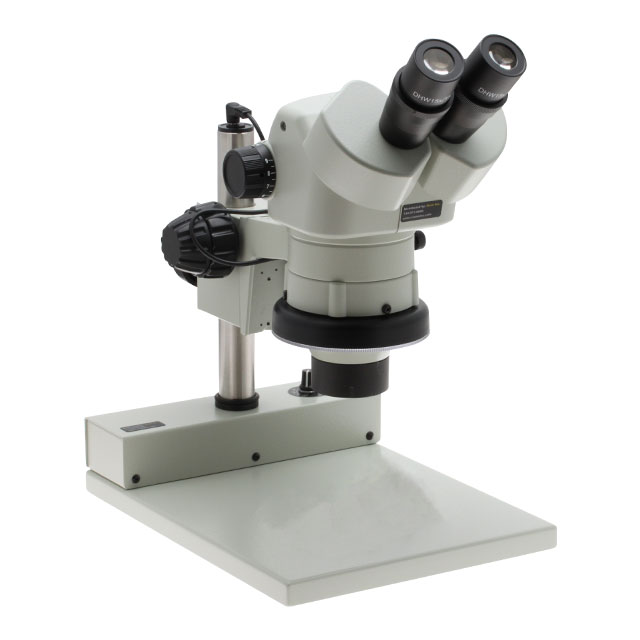

MICRO STEREO ZM 20X-135X W/LIGHT

Search across all available documentation for this part.

Active

Aven Tools

MICRO STEREO ZM 20X-135X W/LIGHT

Technical Specifications

Parameters and characteristics for this part

Specification	26800B-351

Illumination	LED
Includes	Tension Pin, Dust Cover, Rubber Eye Guards
Magnification Range [Max]	135 x
Magnification Range [Min]	20 x
Type	Microscope, Stereo Zoom (Binocular)
Weight	15 lbs
Weight	6.8 kg
Working Distance	84 mm
Working Distance	3.3 in

Part	Type	Field of View [Max]	Field of View [Min]	Field of View [Max]	Field of View [Min]	Illumination	Working Distance	Working Distance	Includes	Magnification Range [Min]	Magnification Range [Max]	Weight	Weight	For Use With/Related Products	Arm Length	Arm Length	Base Size [y]	Base Size [x]	Base Size [y]	Base Size [x]	Camera Type	Interface	Illumination	Features	Magnification Range
Aven Tools 26800B-373-1	Microscope Stereo Zoom (Trinocular)	34.29 mm	3.56 mm	1.35 in	0.14 in	LED	4.25 in	107.95 mm	Adapter Focus Mount Ring Light Stand	6.75 x	50 x
Aven Tools 26800B-351	Microscope Stereo Zoom (Binocular)					LED	3.3 in	84 mm	Dust Cover Rubber Eye Guards Tension Pin	20 x	135 x	15 lbs	6.8 kg
Aven Tools 26800B-550-PCL	Arm Articulating													Microscope	800 mm	31.5 in	77 mm	4.09 in	3.03 in	104 mm
Aven Tools 26800B-250	Microscope Stereo Zoom (Binocular)	20 mm	1.2 mm	0.79 in	0.05 "	LED	2.87 in	73 mm		11 x	75 x										CMOS
Aven Tools 26800B-552	Arm Articulating													Digital Microscopes Monitors	600 mm	23.6 in
Aven Tools 26800B-373-10	Microscope Stereo Zoom (Binocular)					Fiber Optic LED			Microscope Monitor Stand	6.7 x	50 x											USB	24 W
Aven Tools 26800B-521-207																								Focus Mount
Aven Tools 26800B-373-13	Microscope Stereo Zoom (Binocular)					Fiber Optic LED			Cable Microscope Monitor Stand													USB	24 W
Aven Tools 26800B-455-10	Eyepiece Focusing with Scale													SPZ Series											10 x
Aven Tools 26800B-521-517	Focus Mount													DSZ NSW SPZ SSZ Series Microscopes

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2857.39

General part information

Microscope, Stereo Zoom (Binocular) 20x ~ 135x LED
