Technical Specifications
Parameters and characteristics for this part
| Specification | EVLVIP16L-4WFN |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 250 mA |
| Frequency - Switching | 60 kHz |
| Main Purpose | Primary Side, AC/DC |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Power - Output | 4 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Utilized IC / Part | VIPer16 |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Output | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 65.62 | |
Description
General part information
EVLVIP16 Series

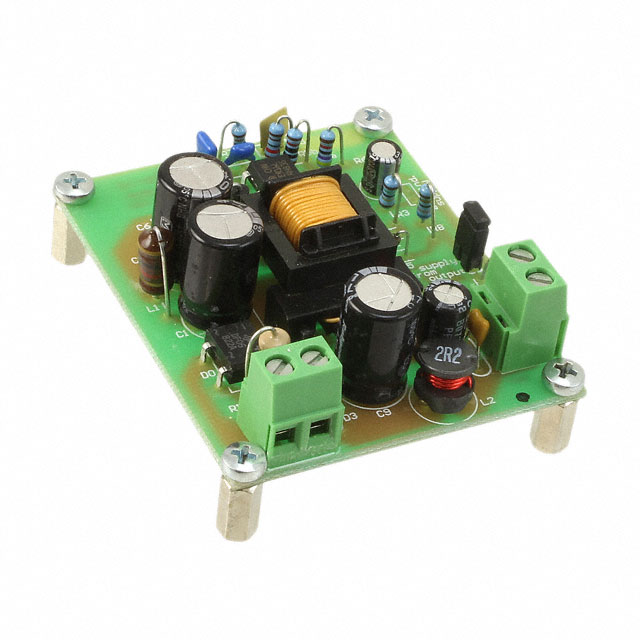

VIPer16 VIPer™ plus AC/DC, Primary Side 1, Non-Isolated Outputs Evaluation Board
