825437-6

Active

TE Connectivity AMP Connectors

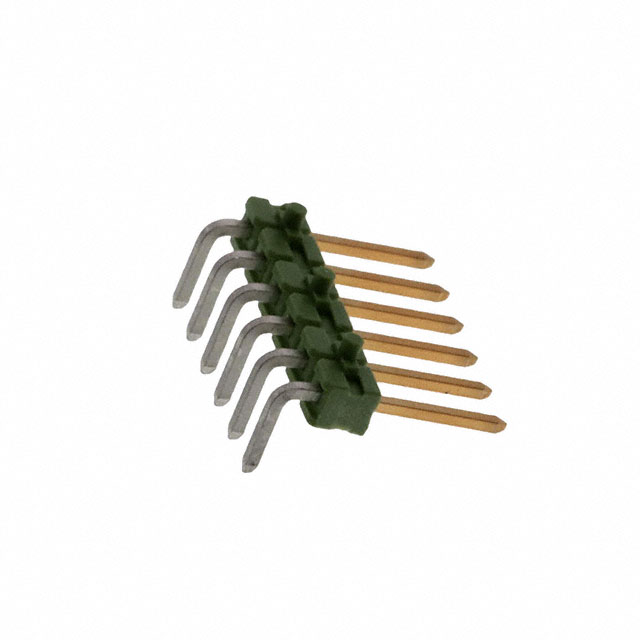

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

825437-6

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	825437-6	825437 Series

Connector Type	Breakaway, Header	Breakaway, Header, Piston
Contact Finish	-	Gold
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness	-	0.51 µm
Contact Finish Thickness	-	20 µin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	2.5 µm	2.5 µm
Contact Finish Thickness - Post	98.4 µin	98.4 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material	-	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Surface Mount
Number of Contacts	-	12
Number of Positions	6	4 - 40
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch	-	2.54 mm
Pitch	-	0.1 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing	-	0.1 in
Row Spacing	-	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

825437 Series

CONN HEADER R/A 7POS 2.54MM

Part	Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post [x]	Shrouding	Number of Positions	Contact Finish - Mating	Insulation Material	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Connector Type	Number of Rows	Material Flammability Rating	Contact Type	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Color	Contact Finish	Pitch [x]	Pitch [x]	Number of Contacts	Contact Finish Thickness	Contact Finish Thickness	Material	Row Spacing [x]	Row Spacing
TE Connectivity AMP Connectors 825437-7	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	7	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 1-825437-5	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	15	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 1825437-1																				Piston	2							Surface Mount					Gold	2.54 mm	0.1 in	12	0.51 µm	20 µin	Brass	0.1 in	2.54 mm
TE Connectivity AMP Connectors 2-825437-5	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded		Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 1-825437-2	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	12	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 1-825437-4	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	14	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 825437-8	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	8	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 825437-3	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded		Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 825437-5	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded		Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 1-825437-0	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	10	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.71
		10	$ 0.68
		100	$ 0.56
		504	$ 0.53

Description

General part information

825437 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
