825437-3

Active

TE Connectivity AMP Connectors

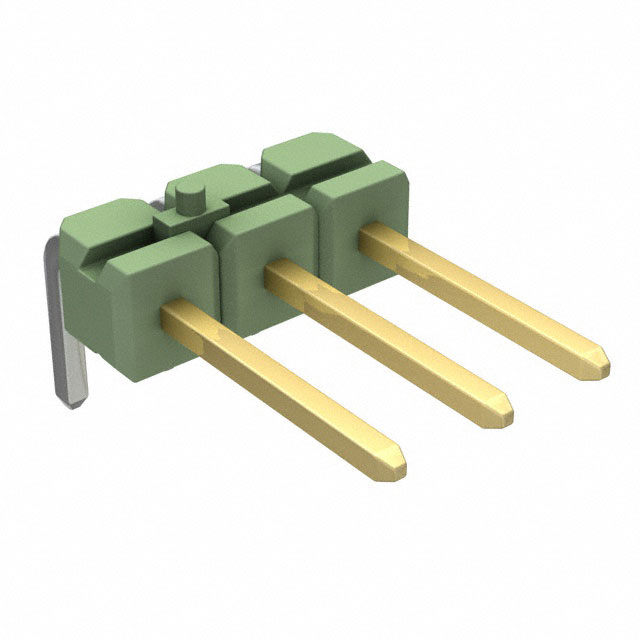

CONN HEADER R/A 3POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

825437-3

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 3POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.59
		10	$ 0.55
		100	$ 0.46
		500	$ 0.39
		1500	$ 0.34
		6000	$ 0.30
		10500	$ 0.28

Description

General part information

825437 Series

Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	825437-3	825437 Series

Connector Type	Breakaway, Header	Breakaway, Header, Piston
Contact Finish	-	Gold
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness	-	0.51 µm
Contact Finish Thickness	-	20 µin
Contact Finish Thickness - Mating	0.099 µm	0.099 µm
Contact Finish Thickness - Mating	3.9 µin	3.9 µin
Contact Finish Thickness - Post	2.5 µm	2.5 µm
Contact Finish Thickness - Post	98.4 µin	98.4 µin
Contact Length - Mating	6.7 mm	6.7 mm
Contact Length - Mating	0.264 in	0.264 in
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Green	Green
Insulation Height	0.1 in	0.1 in
Insulation Height	2.54 mm	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material	-	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Surface Mount
Number of Contacts	-	12
Number of Positions	-	4 - 40
Number of Positions Loaded	All	All
Number of Rows	1	1 - 2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch	-	2.54 mm
Pitch	-	0.1 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing	-	0.1 in
Row Spacing	-	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

825437 Series

CONN HEADER R/A 7POS 2.54MM

Part	Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post [x]	Shrouding	Number of Positions	Contact Finish - Mating	Insulation Material	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Connector Type	Number of Rows	Material Flammability Rating	Contact Type	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Insulation Color	Contact Finish	Pitch [x]	Pitch [x]	Number of Contacts	Contact Finish Thickness	Contact Finish Thickness	Material	Row Spacing [x]	Row Spacing
TE Connectivity AMP Connectors 825437-7	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	7	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 1-825437-5	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	15	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 1825437-1																				Piston	2							Surface Mount					Gold	2.54 mm	0.1 in	12	0.51 µm	20 µin	Brass	0.1 in	2.54 mm
TE Connectivity AMP Connectors 2-825437-5	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded		Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 1-825437-2	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	12	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 1-825437-4	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	14	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 825437-8	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	8	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 825437-3	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded		Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 825437-5	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded		Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
TE Connectivity AMP Connectors 1-825437-0	Board to Board, Cable	Brass	-65 ░C	105 ░C	Tin	0.1 in	2.54 mm	3.2 mm	0.126 in	Unshrouded	10	Gold	Polybutylene Terephthalate (PBT)	Square	6.7 mm	0.264 in	0.099 µm	3.9 µin	Solder	Breakaway, Header	1	UL94 V-0	Male Pin	0.1 in	2.54 mm	Push-Pull	All	Through Hole, Right Angle	2.5 µm	98.4 µin	5 A	Green
