M85049/95-18B

Active

3/4 PERIMETER MOUNTING FLANGE UN

Active

3/4 PERIMETER MOUNTING FLANGE UN

Description

General part information

Connector Mounting Flange, Square 18

Parameters and characteristics for this part

Specification	M85049/95-18B

Accessory Type	Mounting Flange, Square
Features	Self-Locking, Nut
For Use With/Related Products	Circular Connectors
Grade	Military
Qualification	SAE AS 85049
Shell Size - Insert	18
Shell Size - Insert	18

Part	Qualification	For Use With/Related Products	Shell Size - Insert	Shell Size - Insert	Accessory Type	Features	Grade
McGill Microwave Systems M85049/95-12A	SAE AS 85049	Circular Connectors	12	12	Mounting Flange Square	Nut Self-Locking	Military
McGill Microwave Systems M85049/95-24A	SAE AS 85049	Circular Connectors	24	24	Mounting Flange Square	Nut Self-Locking	Military
McGill Microwave Systems M85049/95-18B	SAE AS 85049	Circular Connectors	18	18	Mounting Flange Square	Nut Self-Locking	Military
McGill Microwave Systems M85049/95-14B-A	SAE AS 85049	Circular Connectors		14	Mounting Flange Square	Nut Self-Locking	Military
McGill Microwave Systems M85049/95-24A	SAE AS 85049	Circular Connectors	24	24	Mounting Flange Square	Nut Self-Locking	Military
McGill Microwave Systems M85049/95-25A	SAE AS 85049	Circular Connectors		25	Mounting Flange Square	Nut Self-Locking	Military

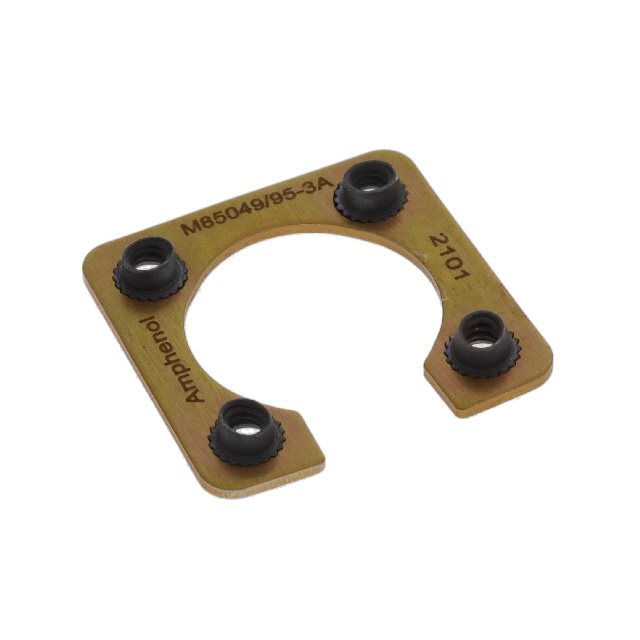

McGill Microwave Systems M85049/95-3A	SAE AS 85049	Circular Connectors		3	Mounting Flange Square	Nut Self-Locking	Military

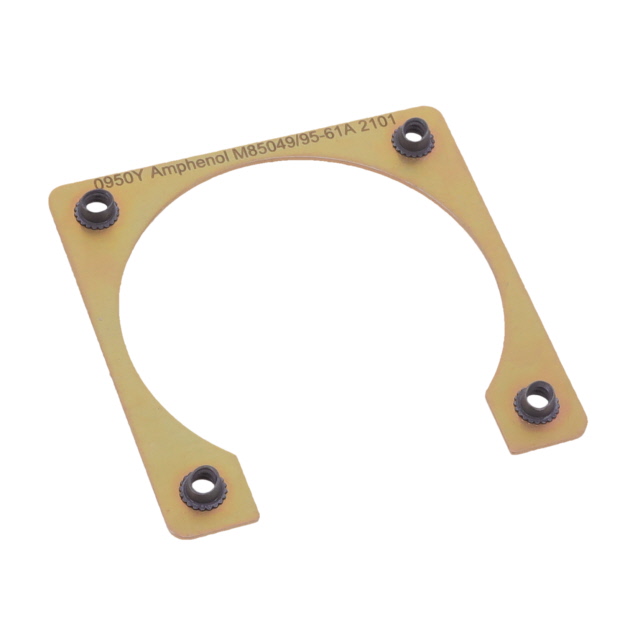

McGill Microwave Systems M85049/95-61A	SAE AS 85049	Circular Connectors		61	Mounting Flange Square	Nut Self-Locking	Military
McGill Microwave Systems M85049/95-18B-A	SAE AS 85049	Circular Connectors	18	18	Mounting Flange Square	Nut Self-Locking	Military
McGill Microwave Systems M85049/95-27A	SAE AS 85049	Circular Connectors	27	27	Mounting Flange Square	Nut Self-Locking	Military
