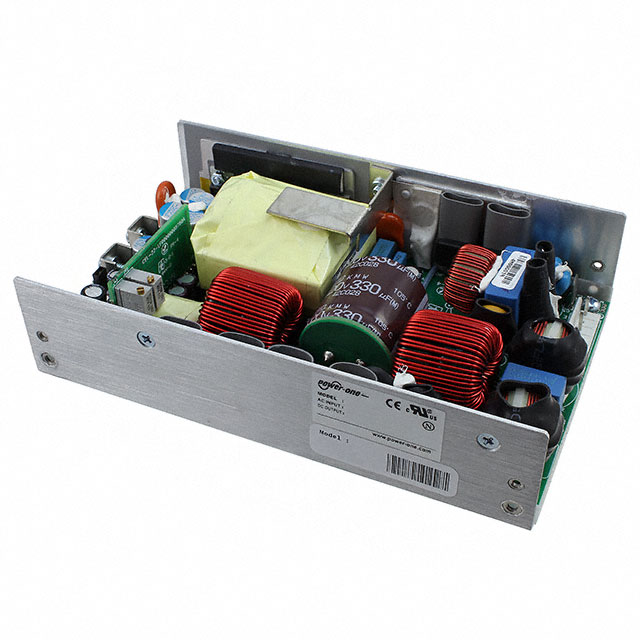

ABC450-1T15G

Active

Bel Power Solutions

AC/DC CONVERTER 15V 250/450W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 15V 250/450W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ABC450-1T15G	ABC450 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	16.6 A	10 - 16.6 A
Efficiency	86 %	86 - 88 %
Features	Adjustable Output, Universal Input, Standby Output, Remote Sense, Remote On/Off, PFC, DC Input Capable	Adjustable Output, Universal Input, Standby Output, Remote Sense, Remote On/Off, PFC, DC Input Capable
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	250 W, 450 W	250 - 450 W
Size / Dimension [x]	6.5 in	6.5 in
Size / Dimension [x]	165.1 mm	165.1 mm
Size / Dimension [y]	101.6 mm	101.6 mm
Size / Dimension [y]	4 "	4 "
Size / Dimension [z]	1.61 "	1.61 "
Size / Dimension [z]	41 mm	41 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	15 V	15 - 30 V

AC/DC CONVERTER 15V 250/450W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Voltage - Output 1	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Minimum Load Required	Features	Mounting Type	Efficiency	Voltage - Isolation	Current - Output 1	Type	Approval Agency
Bel Power Solutions ABC450-1T15G	90 VAC	264 VAC	1	15 V	250 W, 450 W	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	-20 °C	70 °C	ITE (Commercial)		Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Chassis Mount	86 %	4.242 kV	16.6 A	Open Frame	CE
Bel Power Solutions ABC450-1T30G	90 VAC	264 VAC	1	30 V	300 W, 450 W	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	-20 °C	70 °C	ITE (Commercial)		Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	Chassis Mount	88 %	4.242 kV	10 A	Open Frame	CE
