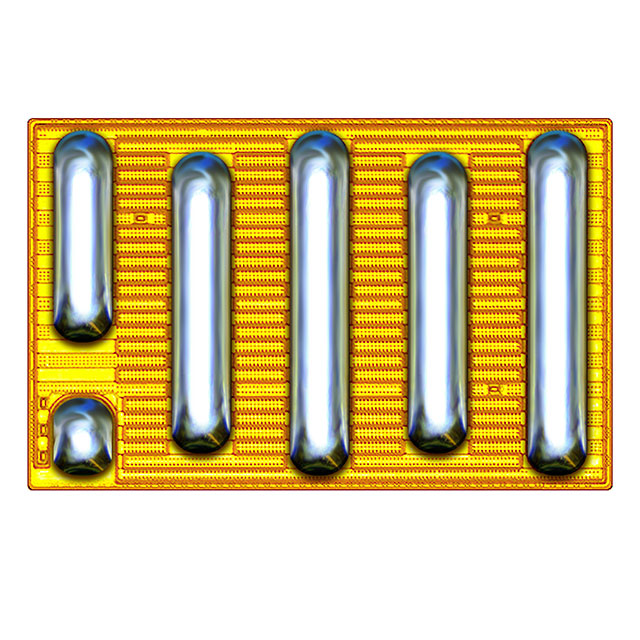

EPC2204A

Active

EPC

TRANS GAN 80V .006OHM AECQ101

Search across all available documentation for this part.

Active

EPC

TRANS GAN 80V .006OHM AECQ101

Technical Specifications

Parameters and characteristics for this part

Specification	EPC2204A

Current - Continuous Drain (Id) @ 25°C	29 A
Drain to Source Voltage (Vdss)	80 V
Drive Voltage (Max Rds On, Min Rds On)	5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	7.4 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	851 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Die
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	6 mOhm
Supplier Device Package	Die
Technology	GaNFET (Gallium Nitride)
Vgs (Max) [Max]	6 V
Vgs (Max) [Min]	-4 V
Vgs(th) (Max) @ Id	2.5 V

TRANS GAN 80V .006OHM AECQ101

Part	FET Type	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs	Technology	Mounting Type	Qualification	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max) [Max]	Vgs (Max) [Min]	Current - Continuous Drain (Id) @ 25°C	Package / Case	Vgs(th) (Max) @ Id	Grade	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs
EPC EPC2204A	N-Channel	150 °C	-40 °C	7.4 nC	GaNFET (Gallium Nitride)	Surface Mount	AEC-Q101	Die	5 V	6 V	-4 V	29 A	Die	2.5 V	Automotive	80 V	851 pF	6 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 80 V 29A (Ta) Surface Mount Die
