794067-1
ActiveTE Connectivity AMP Connectors

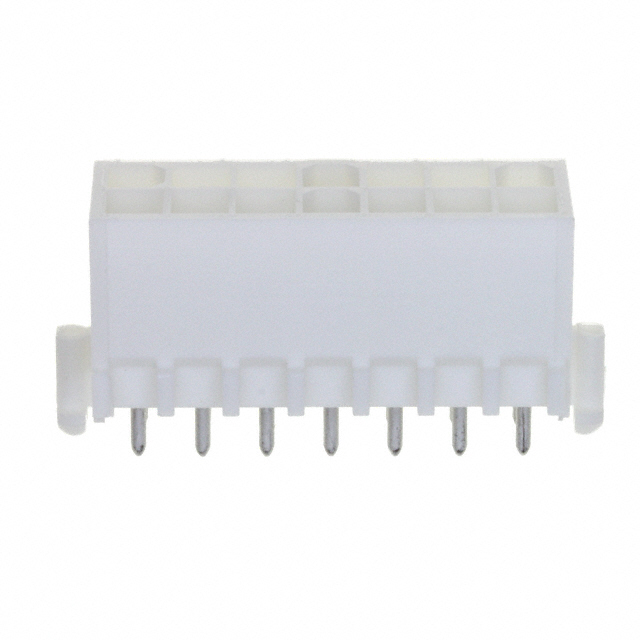

CONN HEADER VERT 14POS 4.14MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794067-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 14POS 4.14MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794067-1 | 794067 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Tin-Lead | Gold, Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 150 Áin | 30 - 150 Áin |
| Contact Finish Thickness - Mating | 3.81 Ám | 0.76 - 3.81 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Post | 4.45 mm | 4.45 mm |
| Contact Length - Post | 0.175 in | 0.175 in |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | White | White |
| Insulation Height | 13.5 mm | 13.5 mm |
| Insulation Height | 0.531 in | 0.531 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 14 | 14 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 - 105 ░C |
| Operating Temperature [Min] | -20 C | -20 C |
| Pitch - Mating | 4.14 mm | 4.14 mm |
| Pitch - Mating | 0.163 in | 0.163 in |
| Row Spacing - Mating | 4.14 mm | 4.14 mm |
| Row Spacing - Mating | 0.163 in | 0.163 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 600 VAC | 600 VAC |
794067 Series
CONN HEADER VERT 14POS 4.14MM
| Part | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Contact Type | Insulation Material | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Number of Positions | Insulation Color | Number of Rows | Number of Positions Loaded | Termination | Contact Material | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Applications | Contact Shape | Pitch - Mating | Pitch - Mating | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Style | Contact Finish - Post | Fastening Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-794067-1 | Varies by Wire Gauge | 4.45 mm | 0.175 in | Male Pin | Nylon, Polyamide (PA) | 13.5 mm | 0.531 in | -20 C | 105 ░C | Gold | 14 | White | 2 | All | Solder | Brass | Shrouded - 4 Wall | 30 Áin | 0.76 Ám | UL94 V-0 | 150 Áin | 3.81 Ám | Through Hole | General Purpose | Circular | 4.14 mm | 0.163 in | Header | 4.14 mm | 0.163 in | Board to Cable/Wire | Tin | Locking Ramp | 600 VAC |
TE Connectivity AMP Connectors 794067-2 | Varies by Wire Gauge | 4.45 mm | 0.175 in | Male Pin | Nylon, Polyamide (PA) | 13.5 mm | 0.531 in | -20 C | 105 ░C | Gold | 14 | White | 2 | All | Solder | Brass | Shrouded - 4 Wall | 30 Áin | 0.76 Ám | UL94 V-0 | 150 Áin | 3.81 Ám | Through Hole | General Purpose | Circular | 4.14 mm | 0.163 in | Header | 4.14 mm | 0.163 in | Board to Cable/Wire | Tin-Lead | Locking Ramp | 600 VAC |
TE Connectivity AMP Connectors 794067-1 | Varies by Wire Gauge | 4.45 mm | 0.175 in | Male Pin | Nylon, Polyamide (PA) | 13.5 mm | 0.531 in | -20 C | 85 °C | Tin-Lead | 14 | White | 2 | All | Solder | Brass | Shrouded - 4 Wall | 150 Áin | 3.81 Ám | UL94 V-0 | 150 Áin | 3.81 Ám | Through Hole | General Purpose | Circular | 4.14 mm | 0.163 in | Header | 4.14 mm | 0.163 in | Board to Cable/Wire | Tin-Lead | Locking Ramp | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794067 Series
Connector Header Through Hole 14 position 0.163" (4.14mm)
