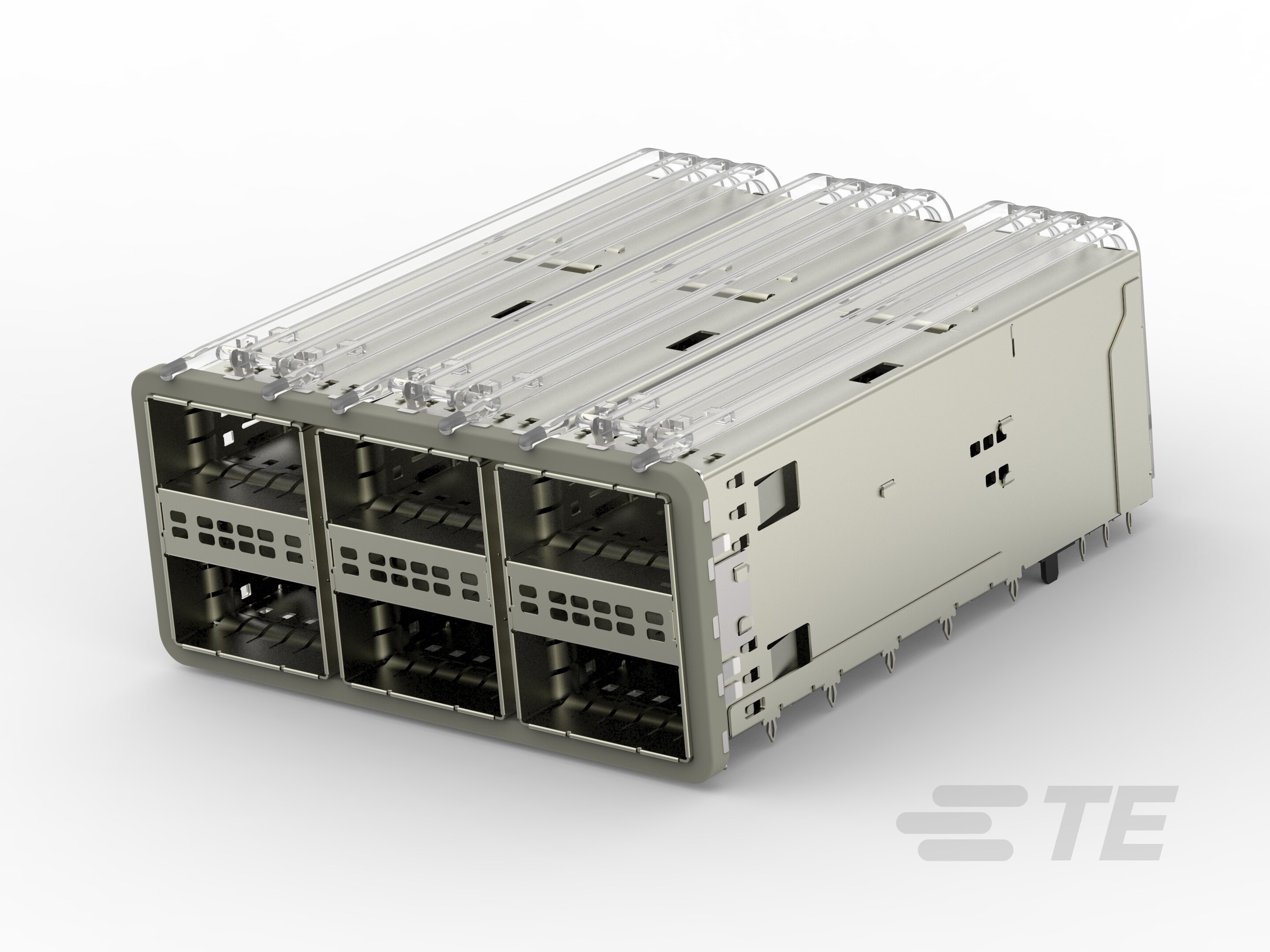

Specification	2170610-3

Connector Pin Configuration (Columns)	3 pins
Connector Pin Configuration (Rows)	2 pins
Connector Style	Ganged, Receptacle with Cage
Connector Type	ZQSFP+
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	EMI Shielded, Light Pipe, Board Guide
Mounting Type	Through Hole, Right Angle
Number of Positions (Columns)	38
Number of Positions (Rows)	6
Number of Positions (Total)	228
Termination	Press-Fit

2170610 Series

Part	Connector Pin Configuration (Rows)	Connector Pin Configuration (Columns)	Connector Style	Contact Finish Thickness	Number of Positions (Rows)	Number of Positions (Total)	Number of Positions (Columns)	Connector Type	Termination	Mounting Type	Features	Contact Finish
TE Connectivity AMP Connectors 2170610-1	2 pins	3 pins	Ganged Receptacle with Cage	30 µin	6	228	38	ZQSFP+	Press-Fit	Right Angle Through Hole	Board Guide EMI Shielded Light Pipe	Gold
TE Connectivity AMP Connectors 2170610-3	2 pins	3 pins	Ganged Receptacle with Cage	30 µin	6	228	38	ZQSFP+	Press-Fit	Right Angle Through Hole	Board Guide EMI Shielded Light Pipe	Gold
