Part	Shell Material, Finish	Connector Type	Wire Gauge	Dielectric Material	Contact Material	Color	Contact Finish	Contact Finish Thickness	Mounting Type	Shell Size	Connector Layout	Termination	Connector Style	Number of Rows	Flange Feature	Contact Type	Number of Positions	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating
McGill Microwave Systems 161A10099X	Steel Yellow Chromate Plated Zinc	Male Pins Plug
McGill Microwave Systems 161A10059X	Steel Yellow Chromate Plated Zinc	Male Pins Plug	20 AWG	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	Black	Gold	8 µin	Free Hanging (In-Line)	5	D DD	Solder Cup	D-Sub	3	Housing Shell (Unthreaded)	Signal	50	UL94 V-0
McGill Microwave Systems 161A10019X	Steel Yellow Chromate Plated Zinc	Male Pins Plug	20 AWG	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	Black	Gold	8 µin	Free Hanging (In-Line)	1	DE E	Solder Cup	D-Sub	2	Housing Shell (Unthreaded)	Signal	9	UL94 V-0	125 °C	-55 °C	125 V

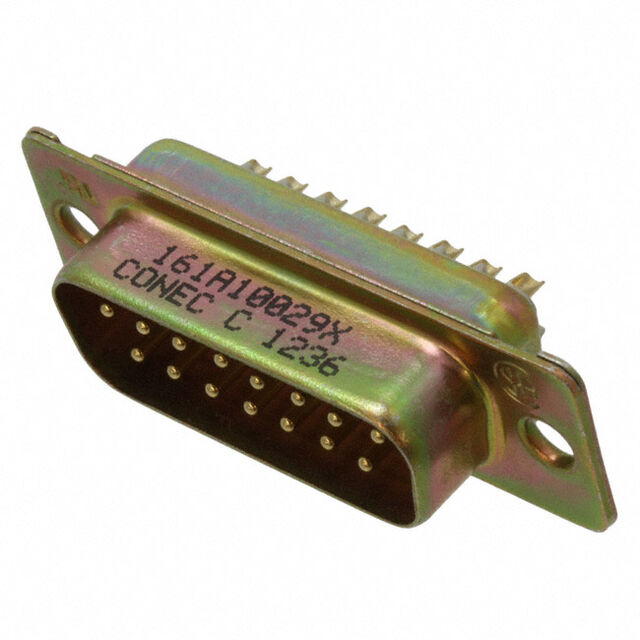

McGill Microwave Systems 161A10029X	Steel Yellow Chromate Plated Zinc	Male Pins Plug	20 AWG	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	Black	Gold	8 µin	Free Hanging (In-Line)	2	A DA	Solder Cup	D-Sub	2	Housing Shell (Unthreaded)	Signal	15	UL94 V-0	125 °C	-55 °C

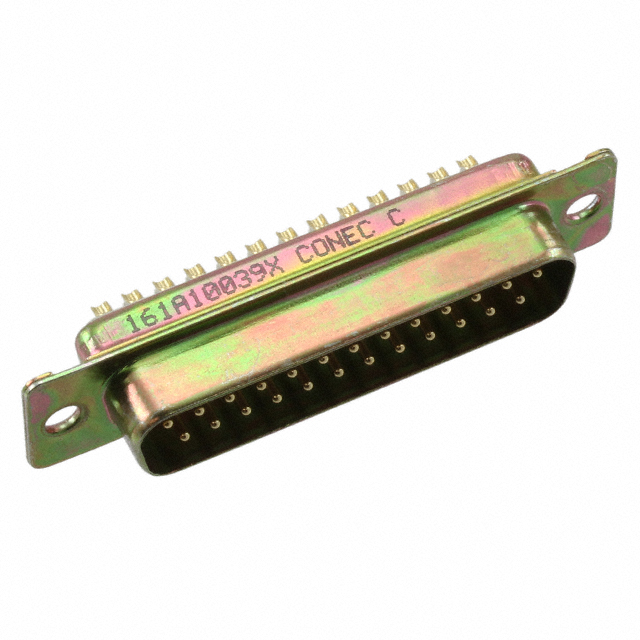

McGill Microwave Systems 161A10039X	Steel Yellow Chromate Plated Zinc	Male Pins Plug	20 AWG	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	Black	Gold	8 µin	Free Hanging (In-Line)	3	B DB	Solder Cup	D-Sub	2	Housing Shell (Unthreaded)	Signal	25	UL94 V-0
McGill Microwave Systems 161A10079X	Steel Yellow Chromate Plated Zinc	Male Pins Plug					Gold		Through Hole	2	A DA	Solder	D-Sub	2	Housing Shell (Unthreaded)	Signal	15		125 °C	-55 °C	125 V
McGill Microwave Systems 161A10069X	Steel Yellow Chromate Plated Zinc	Male Pins Plug					Gold		Through Hole	1	DE E	Solder	D-Sub	2	Housing Shell (Unthreaded)	Signal	9		125 °C	-55 °C	125 V

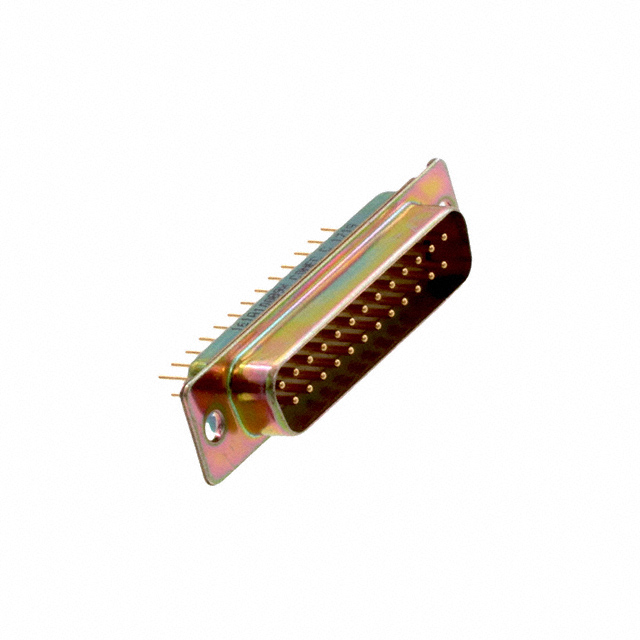

McGill Microwave Systems 161A10089X	Steel Yellow Chromate Plated Zinc	Male Pins Plug					Gold		Through Hole	3	B DB	Solder	D-Sub	2	Housing Shell (Unthreaded)	Signal	25		125 °C	-55 °C	125 V
McGill Microwave Systems 161A10049X	Steel Yellow Chromate Plated Zinc	Male Pins Plug	20 AWG	Glass Filled Polybutylene Terephthalate (PBT)	Copper Alloy	Black	Gold	8 µin	Free Hanging (In-Line)	4	C DC	Solder Cup	D-Sub	2	Housing Shell (Unthreaded)	Signal	37 pos	UL94 V-0
