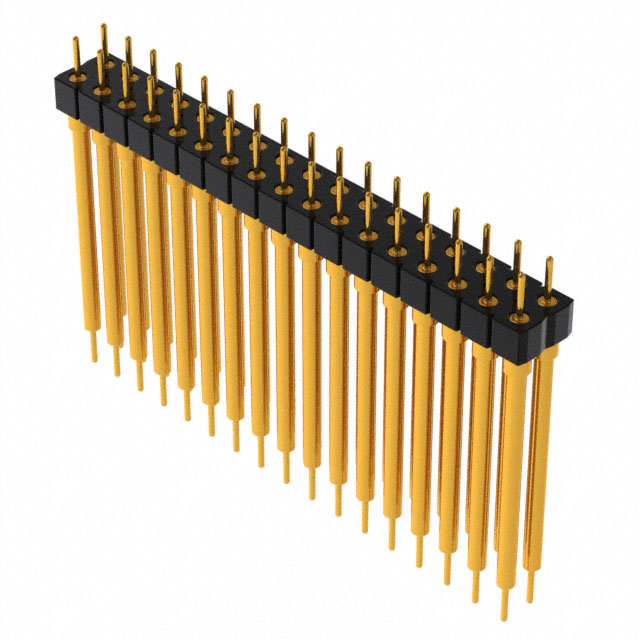

BBD-117-G-D

Active

Samtec Inc.

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BBD-117-G-D

Active

Samtec Inc.

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-117-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.835 "
Insulation Height	21.21 mm
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

BBD-117 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Height	Insulation Height	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Mounting Type	Insulation Material	Connector Type	Termination	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length
Samtec Inc. BBD-117-G-G	-55 °C	125 °C	Black	0.585 in	14.86 mm	2	0.1 in	2.54 mm	All	Nickel	0.835 in	21.21 mm	Push-Pull	3.18 mm	0.125 in	1.27 µm	50 µin	Male Pin	0.125 in	3.18 mm	Unshrouded	Circular	0.51 µm	20 µin	Gold	Through Hole	Polyester Glass Filled	Header	Solder	34	2.54 mm	0.1 in
Samtec Inc. BBD-117-G-D	-55 °C	125 °C	Black	0.835 "	21.21 mm	2	0.1 in	2.54 mm	All	Nickel			Push-Pull	3.18 mm	0.125 in	1.27 µm	50 µin	Male Pin	0.125 in	3.18 mm	Unshrouded	Circular	0.51 µm	20 µin	Gold	Through Hole	Polyester Glass Filled	Header	Solder	34	2.54 mm	0.1 in
Samtec Inc. BBD-117-T-C	-55 °C	125 °C	Black	0.585 in	14.86 mm	2	0.1 in	2.54 mm	All	Nickel	0.835 in	21.21 mm	Push-Pull	3.18 mm	0.125 in	1.27 µm	50 µin	Male Pin	0.125 in	3.18 mm	Unshrouded	Circular				Through Hole	Polyester Glass Filled	Header	Solder	34	2.54 mm	0.1 in
Samtec Inc. BBD-117-T-B	-55 °C	125 °C	Black	0.335 "	8.51 mm	2	0.1 in	2.54 mm	All	Nickel		0.585 in	Push-Pull	3.18 mm	0.125 in	1.27 µm	50 µin	Male Pin	0.125 in	3.18 mm	Unshrouded	Circular				Through Hole	Polyester Glass Filled	Header	Solder	34	2.54 mm	0.1 in	14.86 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	13	$ 25.60

Description

General part information

BBD-117 Series

Connector Header Through Hole 34 position 0.100" (2.54mm)
