TE3-1A-DC-1-AL
ActiveSwitch Components

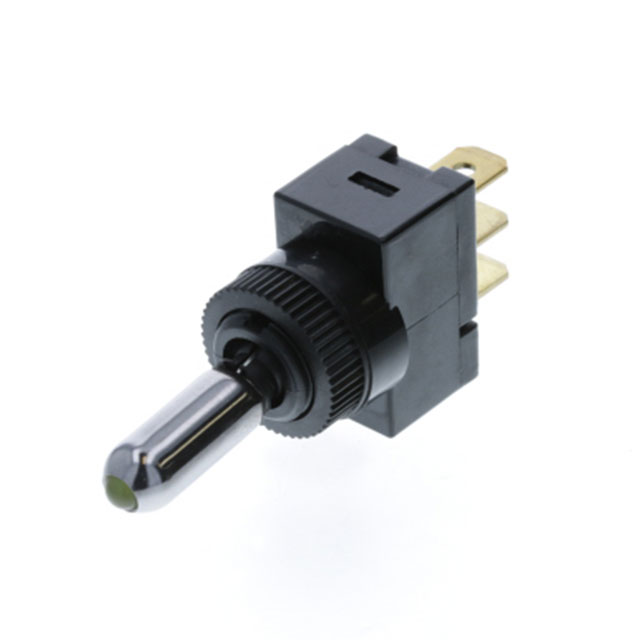

SWITCH TOGGLE SPST 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TE3-1A-DC-1-AL
ActiveSwitch Components
SWITCH TOGGLE SPST 20A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TE3-1A-DC-1-AL | TE3-1A Series |
|---|---|---|
| Actuator Length [x] | 19.3 mm | 19.3 mm |
| Actuator Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Actuator Type | Standard Round | Standard Round |
| Bushing Thread | M12 | M12 |
| Bushing Thread | 1 x 1 | 1 x 1 |
| Circuit | SPST | SPST |
| Current Rating (Amps) | 20 A | 20 A |
| Electrical Life | 6000 Cycles | 6000 Cycles |
| Illumination | Illuminated | Illuminated |
| Illumination Type, Color | Amber, LED | LED, Green, Red, Blue, Amber |
| Illumination Voltage (Nominal) | 12 VDC | 12 VDC |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 12.2 mm | 12.2 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V | 12 V |
TE3-1A Series
SWITCH TOGGLE SPST 20A 12V
| Part | Actuator Length [x] | Electrical Life | Actuator Material | Circuit | Illumination | Switch Function | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Illumination Type, Color | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Bushing Thread | Bushing Thread | Current Rating (Amps) | Termination Style | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switch Components TE3-1A-DC-1-GL | 19.3 mm | 6000 Cycles | Nylon, Polyamide (PA) | SPST | Illuminated | On-Off | 12 V | 12.2 mm | Green, LED | Standard Round | -25 °C | 85 °C | M12 | 1 x 1 | 20 A | Quick Connect - 0.250" (6.3mm) | 12 VDC |
Switch Components TE3-1A-DC-1-RL | 19.3 mm | 6000 Cycles | Nylon, Polyamide (PA) | SPST | Illuminated | On-Off | 12 V | 12.2 mm | LED, Red | Standard Round | -25 °C | 85 °C | M12 | 1 x 1 | 20 A | Quick Connect - 0.250" (6.3mm) | 12 VDC |
Switch Components TE3-1A-DC-1-UL | 19.3 mm | 6000 Cycles | Nylon, Polyamide (PA) | SPST | Illuminated | On-Off | 12 V | 12.2 mm | Blue, LED | Standard Round | -25 °C | 85 °C | M12 | 1 x 1 | 20 A | Quick Connect - 0.250" (6.3mm) | 12 VDC |
Switch Components TE3-1A-DC-1-AL | 19.3 mm | 6000 Cycles | Nylon, Polyamide (PA) | SPST | Illuminated | On-Off | 12 V | 12.2 mm | Amber, LED | Standard Round | -25 °C | 85 °C | M12 | 1 x 1 | 20 A | Quick Connect - 0.250" (6.3mm) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.88 | |
| 10 | $ 4.68 | |||
| 25 | $ 4.49 | |||
| 50 | $ 4.39 | |||
| 100 | $ 4.25 | |||
| 250 | $ 3.94 | |||
| 500 | $ 3.28 | |||
| 1000 | $ 3.00 | |||
Description
General part information
TE3-1A Series
Toggle Switch SPST Panel Mount
Documents
Technical documentation and resources
