796203-1

Active

TE Connectivity AMP Connectors

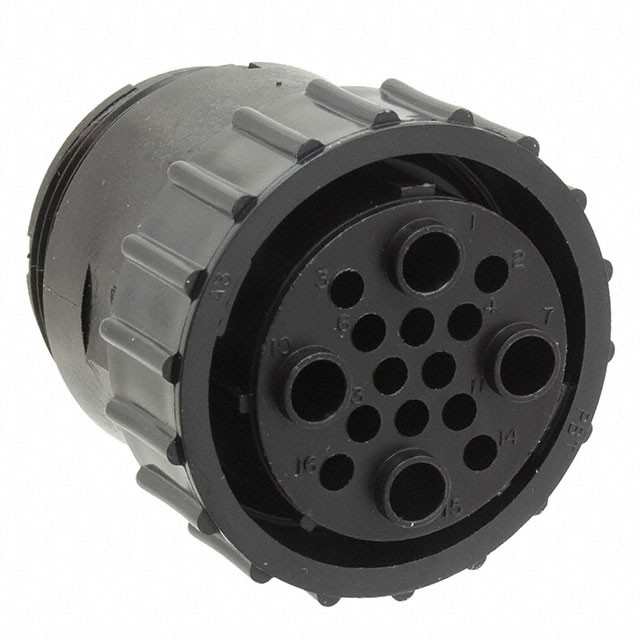

CONN PLG HSG FMALE 16POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLG HSG FMALE 16POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	796203-1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16, 8
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67, IP65
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	4
Number of Positions [x]	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shielding	Unshielded
Type	For Female Sockets

CONN PLG HSG FMALE 16POS INLINE

Part	Mounting Type	Housing Color	Connector Type	Ingress Protection	Type	Material Flammability Rating	Contact Shape	Contact Type	Features	Shielding	Insert Material	Number of Positions [x]	Number of Positions [custom]	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Note
TE Connectivity AMP Connectors 796203-1	Free Hanging (In-Line)	Black	Plug Housing	IP65, IP67	For Female Sockets	UL94 V-0	Circular	Crimp	Coupling Nut	Unshielded	Thermoplastic	12	4	8, 16	105 ░C	-55 °C	Keyed	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 (12 + 4 Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
