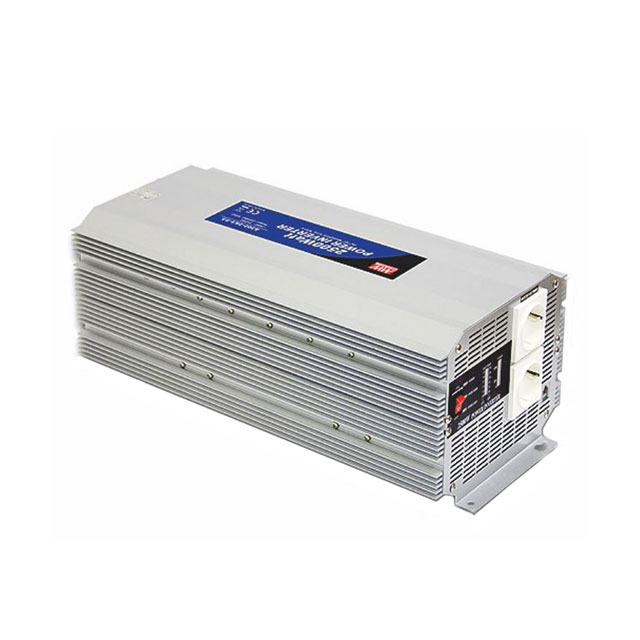

A302-2K5-B4

Active

MEAN WELL USA Inc.

INVERTER 24VDC

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

INVERTER 24VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

INVERTER 24VDC

Part	Connector - AC Output	Voltage - Input	Remote Capability	Power - Output Continuous	Power - Output Surge	Size [x]	Size [z]	Size [x]	Size [y]	Size [y]	Size [z]	Voltage - Output	Region Utilized	AC Outlets	Connector - Voltage Input
MEAN WELL USA Inc. A302-2K5-B4	NEMA 5-15R	24 V		2.5 kW	5 kW	16.93 "	159 mm	430 mm	8.27 in	210 mm	6.26 "	110 VAC	North America	2
MEAN WELL USA Inc. A302-2K5-F3		24 V		2.5 kW	5 kW	16.93 "	159 mm	430 mm	8.27 in	210 mm	6.26 "	230 VAC	Europe	2	Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 676.02

General part information

24VDC Voltage Input 2.5 kW Power Output Continuous Inverter 2 AC Outlets NEMA 5-15R North America

Technical documentation and resources
