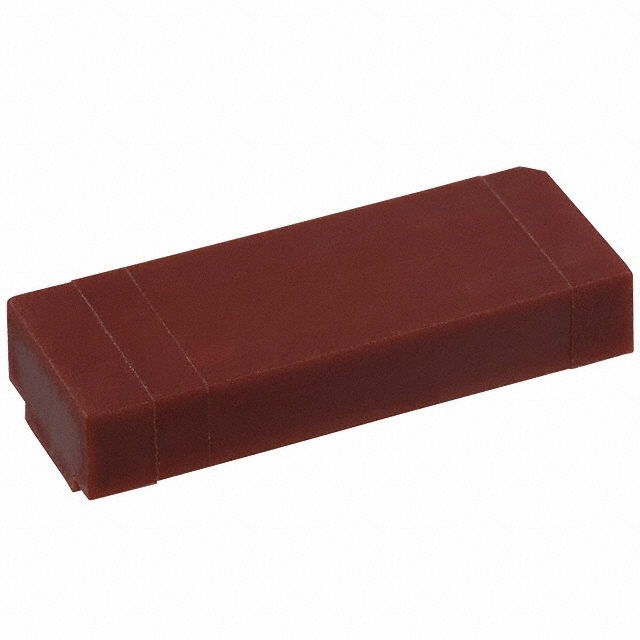

20-650-10

Active

Aries Electronics

.27" COVER 20 PIN

Search across all available documentation for this part.

Active

Aries Electronics

.27" COVER 20 PIN

Technical Specifications

Parameters and characteristics for this part

Specification	20-650-10

Accessory Type	Cap (Cover)
For Use With/Related Products	0600 Series Header
Number of Positions	20

Part	Accessory Type	For Use With/Related Products	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Material - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Current Rating (Amps)	Contact Finish - Post	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Post	Pitch - Post	Contact Material - Mating	Housing Material	Termination	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Type	Type	Type	Termination Post Length	Termination Post Length	Termination Post Length [x]	Termination Post Length [x]
Aries Electronics 20-650-10	Cap (Cover)	0600 Series Header	20
Aries Electronics 20-6503-31				10 çin	0.25 çm	Gold	Phosphor Bronze	10 çin	0.25 çm	UL94 V-0	3 A	Gold	Closed Frame	Through Hole	-55 °C	125 °C	2.54 mm	0.1 in	Beryllium Copper	Glass Filled Nylon 4/6 Polyamide (PA46)	Wire Wrap	0.1 in	2.54 mm	20	DIP	0.6 in	15.24 mm	0.5 in	12.7 mm
Aries Electronics 20-6503-21				10 çin	0.25 çm	Gold	Phosphor Bronze	10 çin	0.25 çm	UL94 V-0	3 A	Gold	Closed Frame	Through Hole	-55 °C	125 °C	2.54 mm	0.1 in	Beryllium Copper	Glass Filled Nylon 4/6 Polyamide (PA46)	Wire Wrap	0.1 in	2.54 mm	20	DIP	0.6 in	15.24 mm			0.36 in	9.14 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Cap (Cover) For 0600 Series Header
