Q-1Z0460001006i

Active

Amphenol Custom Cable

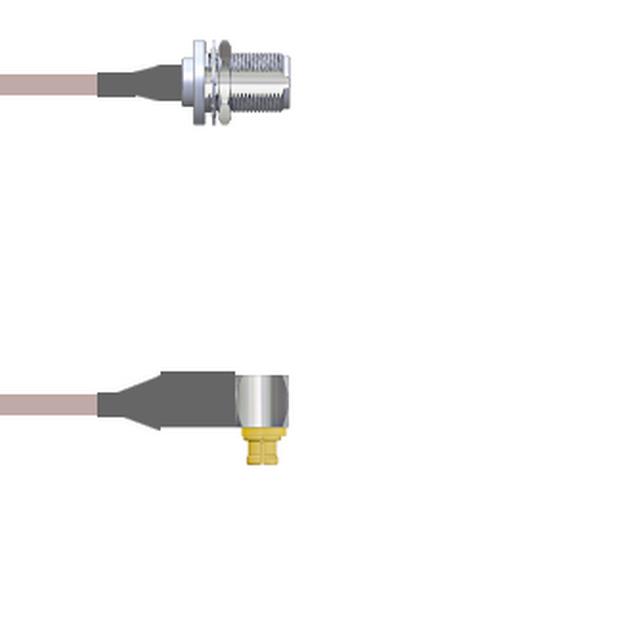

COAX CBL SMPM TO N-TYPE 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1Z0460001006i

Active

Amphenol Custom Cable

COAX CBL SMPM TO N-TYPE 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z0460001006i

1st Connector	Right Angle, SMPM Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	SMPM to N-Type

Q-1Z0460 Series

Part	Color	2nd Connector	1st Connector	2nd Connector Mounting Type	Cable Type	Overall Impedance	1st Contact Gender	2nd Connector Mounting Feature	Features	Style	2nd Contact Gender	Frequency - Max [Max]	Length	Length	1st Connector Mounting Type	Length
Amphenol Custom Cable Q-1Z0460001006i	Copper	N-Type Jack	Right Angle SMPM Plug	Panel Mount	RG-178	50 Ohms	Male	Bulkhead - Front Side Nut	Shielded	SMPM to N-Type	Female	6000 MHz	152.4 mm	6 in	Free Hanging (In-Line)
Amphenol Custom Cable Q-1Z04600012.5M	Copper	N-Type Jack	Right Angle SMPM Plug	Panel Mount	RG-178	50 Ohms	Male	Bulkhead - Front Side Nut	Shielded	SMPM to N-Type	Female	6000 MHz	2.5 m	98.4 in	Free Hanging (In-Line)	8.2 '
Amphenol Custom Cable Q-1Z0460001012i	Copper	N-Type Jack	Right Angle SMPM Plug	Panel Mount	RG-178	50 Ohms	Male	Bulkhead - Front Side Nut	Shielded	SMPM to N-Type	Female	6000 MHz	304.8 mm	12 "	Free Hanging (In-Line)
Amphenol Custom Cable Q-1Z0460001001M	Copper	N-Type Jack	Right Angle SMPM Plug	Panel Mount	RG-178	50 Ohms	Male	Bulkhead - Front Side Nut	Shielded	SMPM to N-Type	Female	6000 MHz	1 m	39.4 in	Free Hanging (In-Line)	3.3 ft
Amphenol Custom Cable Q-1Z0460001.75M	Copper	N-Type Jack	Right Angle SMPM Plug	Panel Mount	RG-178	50 Ohms	Male	Bulkhead - Front Side Nut	Shielded	SMPM to N-Type	Female	6000 MHz	750 mm	29.53 "	Free Hanging (In-Line)
Amphenol Custom Cable Q-1Z0460001060i	Copper	N-Type Jack	Right Angle SMPM Plug	Panel Mount	RG-178	50 Ohms	Male	Bulkhead - Front Side Nut	Shielded	SMPM to N-Type	Female	6000 MHz	1.5 m	5 '	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-1Z0460001024i	Copper	N-Type Jack	Right Angle SMPM Plug	Panel Mount	RG-178	50 Ohms	Male	Bulkhead - Front Side Nut	Shielded	SMPM to N-Type	Female	6000 MHz	609.6 mm	24 "	Free Hanging (In-Line)
Amphenol Custom Cable Q-1Z0460001072i	Copper	N-Type Jack	Right Angle SMPM Plug	Panel Mount	RG-178	50 Ohms	Male	Bulkhead - Front Side Nut	Shielded	SMPM to N-Type	Female	6000 MHz	1.8 m	72 in	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-1Z0460001084i	Copper	N-Type Jack	Right Angle SMPM Plug	Panel Mount	RG-178	50 Ohms	Male	Bulkhead - Front Side Nut	Shielded	SMPM to N-Type	Female	6000 MHz	2.1 m	84 in	Free Hanging (In-Line)	7 ft
Amphenol Custom Cable Q-1Z0460001048i	Copper	N-Type Jack	Right Angle SMPM Plug	Panel Mount	RG-178	50 Ohms	Male	Bulkhead - Front Side Nut	Shielded	SMPM to N-Type	Female	6000 MHz	1200 mm	48 in	Free Hanging (In-Line)	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 117.56
		25	$ 115.29
		50	$ 113.01
		100	$ 110.74
		250	$ 108.46

Description

General part information

Q-1Z0460 Series

Cable Assembly Coaxial SMPM to N-Type RG-178 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
