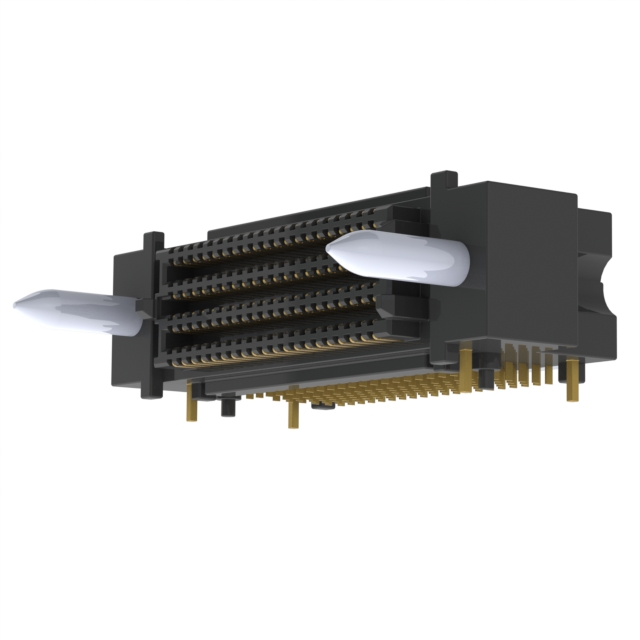

SEAM-20-01-S-08-2-RA-GP-TR

Active

Samtec Inc.

CONN HD ARRAY PLUG 160P R/A SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAM-20-01-S-08-2-RA-GP-TR

Active

Samtec Inc.

CONN HD ARRAY PLUG 160P R/A SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM-20-01-S-08-2-RA-GP-TR

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide, Mating Flange
Height Above Board	0.411 in
Height Above Board	10.45 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	160
Number of Rows	8
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

SEAM-20 Series

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Terminal

...

Part	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish	Features	Height Above Board	Height Above Board	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Samtec Inc. SEAM-20-01-L-06-1-RA-GP-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount Right Angle	120	10 Áin	0.25 Ám	6	Gold	Board Guide Mating Flange	7.9 mm	0.311 in
Samtec Inc. SEAM-20-01-L-04-1-RA-GP-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount Right Angle	80	10 Áin	0.25 Ám		Gold	Board Guide Mating Flange	5.35 mm	0.211 in
Samtec Inc. SEAM-20-11.0-L-04-1-A-K-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount	80	10 Áin	0.25 Ám		Gold	Board Guide Pick and Place	14.61 mm	0.575 in
Samtec Inc. SEAM-20-11.0-L-04-2-A-K-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount	80	10 Áin	0.25 Ám		Gold	Board Guide Pick and Place	14.61 mm	0.575 in	16 mm 17 mm 17.5 mm 18.5 mm
Samtec Inc. SEAM-20-01-S-06-2-RA-GP-K-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount Right Angle	120	30 Áin	0.76 Ám	6	Gold	Board Guide Mating Flange Pick and Place	7.9 mm	0.311 in
Samtec Inc. SEAM-20-01-S-08-2-RA-GP-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount Right Angle	160	30 Áin	0.76 Ám	8	Gold	Board Guide Mating Flange	10.45 mm	0.411 in
Samtec Inc. SEAM-15-02.0-S-04-2-A-K-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount	60	30 Áin	0.76 Ám		Gold	Board Guide Pick and Place	4.6 mm	0.181 in	7 mm 8 mm 8.5 mm 9.5 mm
Samtec Inc. SEAM-20-07.0-S-05-1-A-K-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount	100	30 Áin	0.76 Ám	5	Gold	Board Guide Pick and Place			12 mm 13 mm 13.5 mm 14.5 mm 15 mm	0.417 in	10.6 mm
Samtec Inc. SEAM-20-01-L-04-2-RA-GP-K-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount Right Angle	80	10 Áin	0.25 Ám		Gold	Board Guide Mating Flange Pick and Place	5.35 mm	0.211 in
Samtec Inc. SEAM-20-01-L-06-1-RA-K-TR	0.05 in	1.27 mm	High Density Array Male	Surface Mount Right Angle	120	10 Áin	0.25 Ám	6	Gold	Board Guide Pick and Place	7.9 mm	0.311 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	50	$ 24.01

Description

General part information

SEAM-20 Series

Board to Board & Mezzanine Connectors .050" SEARAY High-Speed High-Density Open-Pin-Field Array Terminal
