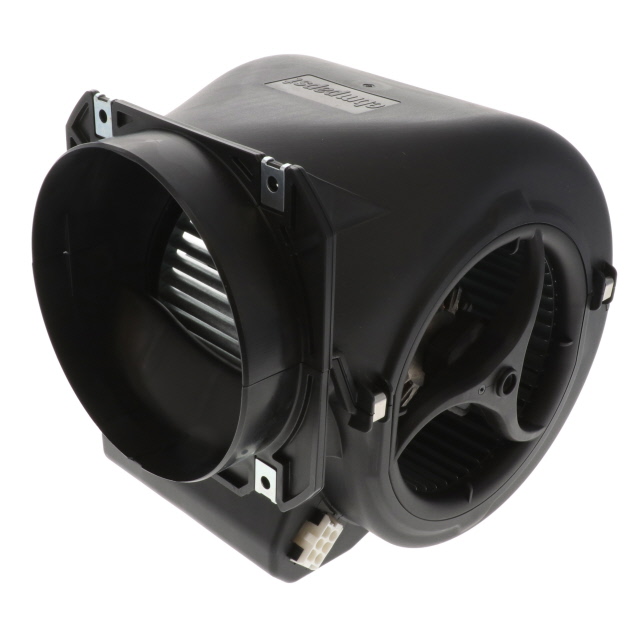

D2E146-HT65-94

Active

ebm-papst Inc.

FAN/BLOWER,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D2E146-HT65-94

Active

ebm-papst Inc.

FAN/BLOWER,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D2E146-HT65-94

Approval Agency	CE
Bearing Type	Ball
Current Rating (Amps)	3.75 A
Fan Type	Blower, Centrifugal
Features	Capacitor, Thermal Overload Protector (TOP)
Material - Blade	Steel
Material - Frame	Polypropylene (PP)
Operating Temperature [Max]	40 °C
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
RPM	2000 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	220 mm
Size / Dimension [z]	216 mm
Static Pressure	100 Pa
Static Pressure	0.401 in H2O
Termination	6 Position Rectangular Connector
Voltage - Rated	115 VAC
Width [y]	199 mm

D2E146 Series

Part	Termination	Voltage - Rated	Bearing Type	Power (Watts)	Material - Blade	Features	Static Pressure	Static Pressure	Fan Type	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	RPM	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Approval Agency	Ingress Protection	Current Rating (Amps)	Size / Dimension [z]	Air Flow	Air Flow	Air Flow [Max]	Air Flow [Min]	Air Flow [Min]	Air Flow [Max]	Weight	Weight	Size / Dimension [diameter]	Noise [Max]	Noise [Min]	Power (Watts) [Min]	Power (Watts) [Max]
ebm-papst Inc. D2E146-AP47-22	4 Wire Leads with Splice Terminals	230 VAC	Ball	330 W	Steel	Capacitor Thermal Overload Protector (TOP)	1.606 in H2O	400 Pa	Blower	Steel	-25 °C	25 °C	-25 °C	25 °C	270 mm	2550 RPM	219 mm	205 mm	Rectangular/Rounded	CCC EAC	IP44	1.45 A
ebm-papst Inc. D2E146-HT65-94	6 Position Rectangular Connector	115 VAC	Ball		Steel	Capacitor Thermal Overload Protector (TOP)	0.401 in H2O	100 Pa	Blower Centrifugal	Polypropylene (PP)	-25 °C	40 °C	-25 °C	40 °C	199 mm	2000 RPM		220 mm	Rectangular/Rounded	CE		3.75 A	216 mm
ebm-papst Inc. D2E146-HT67-39	6 Position Rectangular Connector	230 VAC	Ball		Steel	Capacitor Thermal Overload Protector (TOP)	0.803 in H2O	200 Pa	Blower Centrifugal	Polypropylene (PP)	-25 °C	50 °C	-25 °C	50 °C	199 mm	2100 RPM		220 mm	Rectangular/Rounded			1.75 A	216 mm
ebm-papst Inc. D2E146-HT75-45	6 Position Rectangular Connector	115 VAC	Ball	380 W	Steel	Capacitor Thermal Overload Protector (TOP)	0.803 in H2O	200 Pa	Blower Centrifugal	Polypropylene (PP)					199 mm	2150 RPM		220 mm	Rectangular/Rounded	CE CSA UL		3.3 A	216 mm
ebm-papst Inc. D2E146-HT67-63	6 Position Rectangular Connector	230 VAC	Ball		Steel	Capacitor Thermal Overload Protector (TOP)	0.803 in H2O	200 Pa	Blower Centrifugal	Polypropylene (PP)	-25 °C	50 °C	-25 °C	50 °C	199 mm	2100 RPM		220 mm	Rectangular/Rounded			1.75 A	216 mm
ebm-papst Inc. D2E146-AP47-75	Terminal Block	230 VAC	Ball	300 W	Steel	Capacitor	0.803 in H2O	200 Pa	Blower	Steel						2050 RPM					IP44	1.31 A		16 m³/min	571.3 CFM
ebm-papst Inc. D2E146-HT67-02	6 Position Rectangular Connector	230 VAC	Ball		Steel	Capacitor Thermal Overload Protector (TOP)	0.803 in H2O	200 Pa	Blower Centrifugal	Polypropylene (PP)	-25 °C	50 °C	-25 °C	50 °C	199 mm	2100 RPM		220 mm	Rectangular/Rounded			1.75 A	216 mm
ebm-papst Inc. D2E146-HT65-14	6 Position Rectangular Connector	115 VAC			Polypropylene (PP)				Blower Centrifugal	Polypropylene (PP)					178 mm		216 mm	220 mm		CE VDE						16.3 m³/min	212 CFM	5.94 m³/min	582 CFM	3.8 kg	8.4 lbs	146 mm	63 dB(A)	50 dB(A)	193 W	455 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 278.06

Description

General part information

D2E146 Series

Fan Blower, Centrifugal 115VAC Rectangular/Rounded - 220mm L x 216mm H Ball 6 Position Rectangular Connector

Documents

Technical documentation and resources
