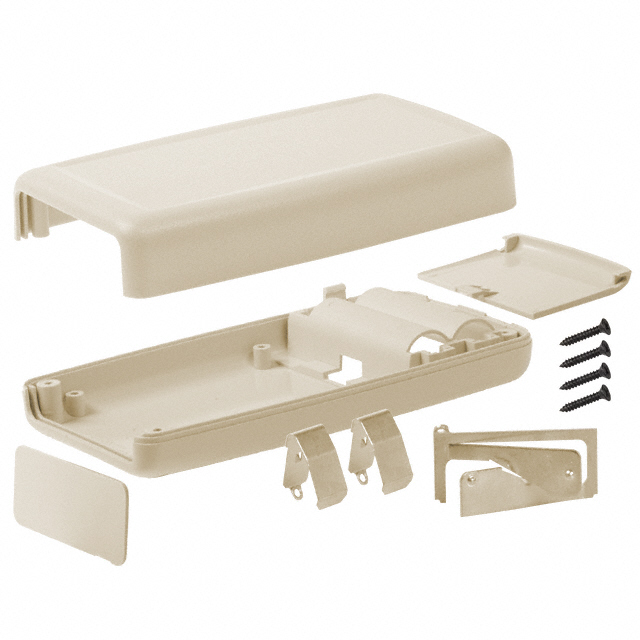

H67AA,AL

Active

Serpac

BOX ABS ALMOND 4.94"L X 2.75"W

Deep-Dive with AI

Search across all available documentation for this part.

H67AA,AL

Active

Serpac

BOX ABS ALMOND 4.94"L X 2.75"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	H67AA,AL

Area (L x W)	13.6 in˛
Area (L x W)	88 cm²
Color	Almond
Container Type	Box
Features	PCB Supports, AA, Battery Compartment
Height [z]	1.28 in
Height [z]	32.51 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	125.48 mm, 4.94 "
Size / Dimension [y]	69.85 mm
Thickness	2.03 mm
Thickness	0.08 "
Weight	58.97 g
Weight	0.13 lbs

H67 Series

Part	Ratings	Area (L x W)	Area (L x W)	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Color	Material	Features	Thickness	Thickness	Container Type	Weight	Weight	Material Flammability Rating
Serpac H67AA,AL	IP40	13.6 in˛	88 cm²	69.85 mm	4.94 " 125.48 mm	1.28 in	32.51 mm	Almond	Plastic ABS	AA Battery Compartment PCB Supports	2.03 mm	0.08 "	Box	58.97 g	0.13 lbs	UL94 HB
Serpac H67,GY	IP40	13.6 in˛	88 cm²	69.85 mm	4.94 " 125.48 mm	1.28 in	32.51 mm	Gray	Plastic ABS	PCB Supports	2.03 mm	0.08 "	Box	58.97 g	0.13 lbs	UL94 HB
Serpac H67AA,BK	IP40	13.6 in˛	88 cm²	69.85 mm	4.94 " 125.48 mm	1.28 in	32.51 mm	Black	Plastic ABS	AA Battery Compartment PCB Supports	2.03 mm	0.08 "	Box	58.97 g	0.13 lbs	UL94 HB
Serpac H67AC,AL	IP40	13.6 in˛	88 cm²	69.85 mm	4.94 " 125.48 mm	1.28 in	32.51 mm	Almond	Plastic ABS		2.03 mm	0.08 "	Box	58.97 g	0.13 lbs	UL94 HB
Serpac H67AC,GY	IP40	13.6 in˛	88 cm²	69.85 mm	4.94 " 125.48 mm	1.28 in	32.51 mm	Gray	Plastic ABS		2.03 mm	0.08 "	Box	58.97 g	0.13 lbs	UL94 HB
Serpac H67,BK	IP40	13.6 in˛	88 cm²	69.85 mm	4.94 " 125.48 mm	1.28 in	32.51 mm	Black	Plastic ABS	PCB Supports	2.03 mm	0.08 "	Box	58.97 g	0.13 lbs	UL94 HB
Serpac H67,AL	IP40	13.6 in˛	88 cm²	69.85 mm	4.94 " 125.48 mm	1.28 in	32.51 mm	Almond	Plastic ABS	PCB Supports	2.03 mm	0.08 "	Box	58.97 g	0.13 lbs	UL94 HB
Serpac H67PC,GY	IP40	13.6 in˛	88 cm²	69.85 mm	4.94 " 125.48 mm	1.28 in	32.51 mm	Gray	Plastic ABS	PCB Supports Pocket Clip	2.03 mm	0.08 "	Box	62.14 g	0.137 lb	UL94 HB
Serpac H67AC,BK	IP40	13.6 in˛	88 cm²	69.85 mm	4.94 " 125.48 mm	1.28 in	32.51 mm	Black	Plastic ABS		2.03 mm	0.08 "	Box	58.97 g	0.13 lbs	UL94 HB
Serpac H67PC,AL	IP40	13.6 in˛	88 cm²	69.85 mm	4.94 " 125.48 mm	1.28 in	32.51 mm	Almond	Plastic ABS	PCB Supports Pocket Clip	2.03 mm	0.08 "	Box	62.14 g	0.137 lb	UL94 HB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.19

Description

General part information

H67 Series

Box Plastic, ABS Almond Hand Held, Split Sides and End Panel(s) 4.940" L x 2.750" W (125.48mm x 69.85mm) X 1.280" (32.51mm)

Documents

Technical documentation and resources

No documents available
