Q-1U01A0003012i

Active

Amphenol Custom Cable

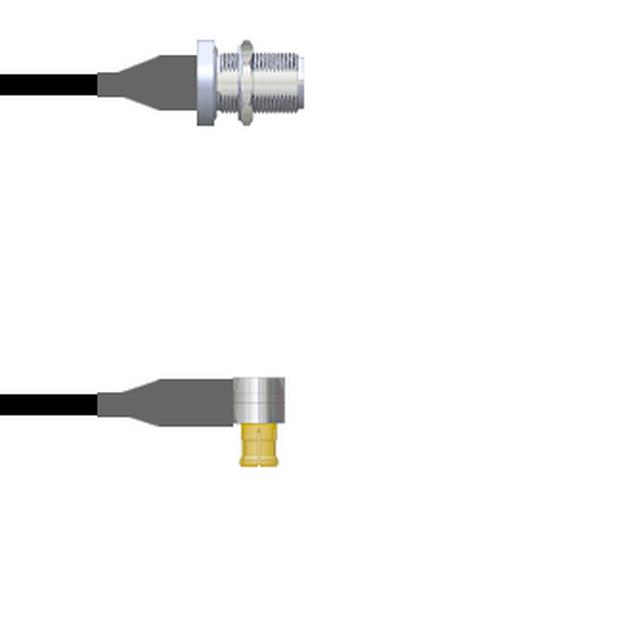

CBL ASSY MCX-NTYPE PLUG-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U01A0003012i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PLUG-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U01A0003012i

1st Connector	Right Angle, MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1U01A0 Series

Part	2nd Connector Mounting Type	2nd Connector Mounting Feature	Color	1st Connector Mounting Type	1st Connector	2nd Contact Gender	2nd Connector	Cable Type	Frequency - Max [Max]	Overall Impedance	Style	Features	Length [x]	Length [x]	1st Contact Gender	Length	Length	Length
Amphenol Custom Cable Q-1U01A0003018i	Panel Mount	Bulkhead - Front Side Nut	Black	Free Hanging (In-Line)	MCX Plug Right Angle	Female	N-Type Jack	RG-174	6000 MHz	50 Ohms	MCX to N-Type	Shielded	457.2 mm	457.2 mm	Male
Amphenol Custom Cable Q-1U01A0005060i	Panel Mount	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	MCX Plug Right Angle	Female	N-Type Jack	RG-316	6000 MHz	50 Ohms	MCX to N-Type	Shielded			Male	5 ft	1.5 m	5 '
Amphenol Custom Cable Q-1U01A0003072i	Panel Mount	Bulkhead - Front Side Nut	Black	Free Hanging (In-Line)	MCX Plug Right Angle	Female	N-Type Jack	RG-174	6000 MHz	50 Ohms	MCX to N-Type	Shielded			Male	6 ft	1.8 m	72 in
Amphenol Custom Cable Q-1U01A0005009i	Panel Mount	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	MCX Plug Right Angle	Female	N-Type Jack	RG-316	6000 MHz	50 Ohms	MCX to N-Type	Shielded			Male		228.6 mm	9 "
Amphenol Custom Cable Q-1U01A0003012i	Panel Mount	Bulkhead - Front Side Nut	Black	Free Hanging (In-Line)	MCX Plug Right Angle	Female	N-Type Jack	RG-174	6000 MHz	50 Ohms	MCX to N-Type	Shielded			Male		304.8 mm	12 "
Amphenol Custom Cable Q-1U01A0005072i	Panel Mount	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	MCX Plug Right Angle	Female	N-Type Jack	RG-316	6000 MHz	50 Ohms	MCX to N-Type	Shielded			Male	6 ft	1.8 m	72 in
Amphenol Custom Cable Q-1U01A0003009i	Panel Mount	Bulkhead - Front Side Nut	Black	Free Hanging (In-Line)	MCX Plug Right Angle	Female	N-Type Jack	RG-174	6000 MHz	50 Ohms	MCX to N-Type	Shielded			Male		228.6 mm	9 "
Amphenol Custom Cable Q-1U01A0003060i	Panel Mount	Bulkhead - Front Side Nut	Black	Free Hanging (In-Line)	MCX Plug Right Angle	Female	N-Type Jack	RG-174	6000 MHz	50 Ohms	MCX to N-Type	Shielded			Male	5 ft	1.5 m	5 '
Amphenol Custom Cable Q-1U01A0005108i	Panel Mount	Bulkhead - Front Side Nut	Copper	Free Hanging (In-Line)	MCX Plug Right Angle	Female	N-Type Jack	RG-316	6000 MHz	50 Ohms	MCX to N-Type	Shielded			Male	9 ft	2.7 m	108 in
Amphenol Custom Cable Q-1U01A00031.5M	Panel Mount	Bulkhead - Front Side Nut	Black	Free Hanging (In-Line)	MCX Plug Right Angle	Female	N-Type Jack	RG-174	6000 MHz	50 Ohms	MCX to N-Type	Shielded			Male	4.9 ft	1.5 m	59.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 96.28
		25	$ 94.45
		50	$ 92.62
		100	$ 90.79
		250	$ 88.96

Description

General part information

Q-1U01A0 Series

Cable Assembly Coaxial MCX to N-Type RG-174 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
