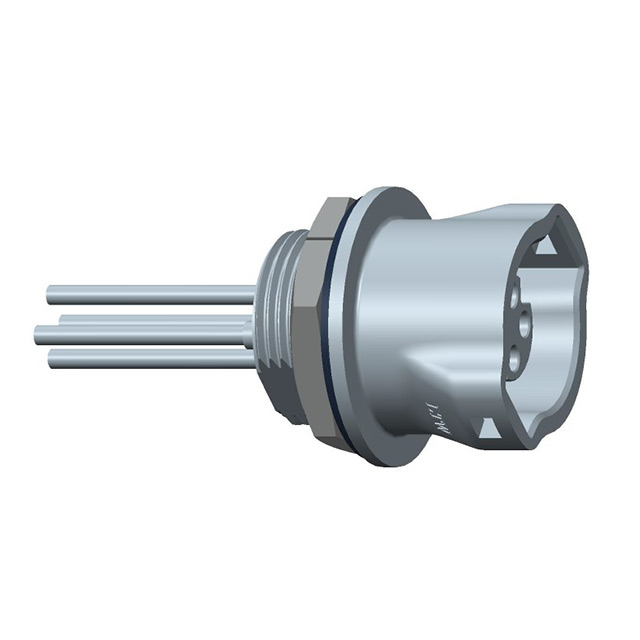

CB-04RFFC-RC7A10

Active

Amphenol LTW

CONN RCPT HSNG FMALE 4POS PNL MT

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT HSNG FMALE 4POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	CB-04RFFC-RC7A10

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock, Snap-In
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Modified Polyphenylene Ether (mPPE)
Shell Size - Insert	C
Shielding	Unshielded
Type	For Female Sockets

Part	Ingress Protection	Mounting Feature	Connector Type	Contact Shape	Contact Type	Housing Color	Material Flammability Rating	Contact Size	Note	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Number of Positions	Shell Material	Shielding	Type
Amphenol LTW CB-04RFFC-RC7A10	IP67 - Dust Tight Waterproof	Bulkhead - Rear Side Nut	Receptacle Housing	Circular	Crimp	Black	UL94 V-0	16	Contacts Not Included	Latch Lock Snap-In	-40 °C	105 ░C	Keyed	C	4	Modified Polyphenylene Ether (mPPE)	Unshielded	For Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Panel Mount
