S8B-ZR

Active

JST Sales America Inc.

CONN HEADER R/A 8POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 8POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	S8B-ZR

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [custom]	2.4 mm
Contact Length - Mating [custom]	0.094 in
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Fastening Type	Number of Rows	Contact Type	Insulation Material	Termination	Number of Positions Loaded	Contact Shape	Number of Positions	Voltage Rating	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Material Flammability Rating	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Insulation Color	Mounting Type	Shrouding	Insulation Height	Insulation Height	Features
JST Sales America Inc. S8B-ZR	Brass	-25 °C	85 °C	Board to Cable/Wire	Detent Lock	1	Male Pin	Polyamide (PA66) Nylon 6/6 Glass Filled	Solder	All	Circular	8	50 V	2.4 mm	0.094 in	UL94 V-0	Header	0.106 in	2.69 mm	Tin	Natural	Through Hole Right Angle	Shrouded - 4 Wall	3.7 mm	0.146 "
JST Sales America Inc. S8B-ZR-SM2-TF	Brass	-25 °C	85 °C	Board to Cable/Wire	Detent Lock	1	Male Pin	Glass Filled Nylon 4/6 Polyamide (PA46)	Solder	All	Circular	8	50 V	2.4 mm	0.094 in	UL94 V-0	Header			Tin	Natural	Surface Mount Right Angle	Shrouded - 4 Wall	3.7 mm	0.146 "	Board Guide
JST Sales America Inc. S8B-ZR-3.4	Brass	-25 °C	85 °C	Board to Cable/Wire	Detent Lock	1	Male Pin	Polyamide (PA66) Nylon 6/6 Glass Filled	Solder	All	Circular	8	50 V			UL94 V-0	Header	0.134 in	3.4 mm	Tin	Natural	Through Hole Right Angle	Shrouded - 4 Wall	3.7 mm	0.146 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

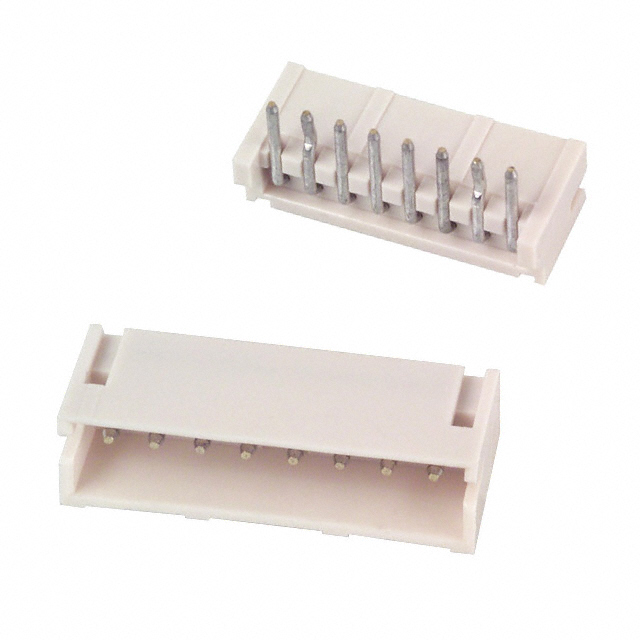

Connector Header Through Hole, Right Angle 8 position 0.059" (1.50mm)
