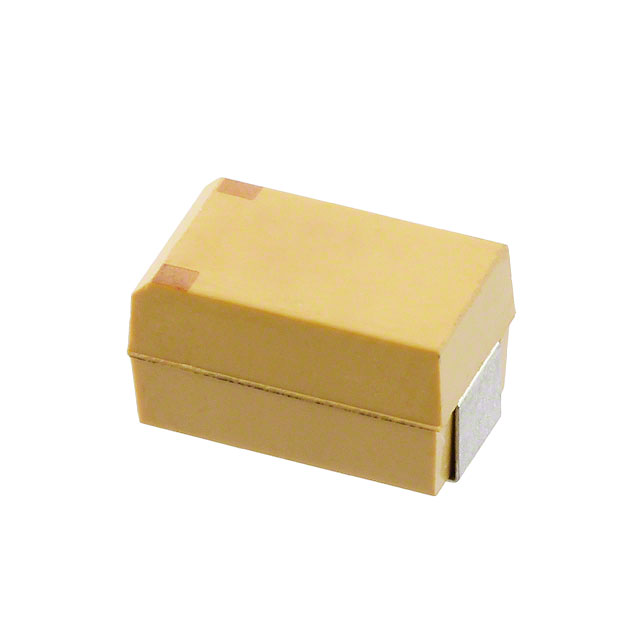

T513X476K035BH61107505
ActiveKEMET
CAP TANT 47UF 10% 35V 2917
Deep-Dive with AI
Search across all available documentation for this part.
T513X476K035BH61107505
ActiveKEMET
CAP TANT 47UF 10% 35V 2917
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T513X476K035BH61107505 |
|---|---|
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 65 mOhm |
| Failure Rate | B (0.1%) |
| Features | High Reliability |
| Height - Seated (Max) [Max] | 0.169 " |
| Height - Seated (Max) [Max] | 4.3 mm |
| Lifetime @ Temp. | 2000 Hrs |
| Manufacturer Size Code | X |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 7343 Metric |
| Package / Case | 2917 |
| Ratings | COTS |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 4.3 mm |
| Size / Dimension [y] | 0.169 " |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 18.52 | |
| 10 | $ 17.13 | |||
| 50 | $ 14.82 | |||
| 100 | $ 13.34 | |||
| Digi-Reel® | 1 | $ 18.52 | ||
| 10 | $ 17.13 | |||
| 50 | $ 14.82 | |||
| 100 | $ 13.34 | |||
| Tape & Reel (TR) | 500 | $ 12.32 | ||
Description
General part information
T513X Series
47 µF Molded Tantalum Capacitors 35 V 2917 (7343 Metric) 65mOhm
