J2CE3221-20L0A-179

Active

ITT Cannon, LLC

CORD 10 AWG J1772 TO CBL 20' BLK

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CORD 10 AWG J1772 TO CBL 20' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	J2CE3221-20L0A-179

1st Connector	Angled, J1772
2nd Connector	Cable
Approval Agency Marking	UL
Approved Countries	United States
Color	Black
Current Rating (Amps)	32 A
Features	Electric Vehicles Charging (EV Charger)
Length	20 ft
Length	6.1 m
Number of Conductors	3, 2
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Shielding	Unshielded
Style	Male Plug to Leads
Voltage Rating	240 VAC
Wire Gauge	10 AWG

Part	Features	Shielding	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	2nd Connector	Approval Agency Marking	Color	Approved Countries	Number of Conductors	Length	Length	Style	1st Connector	Wire Gauge
ITT Cannon, LLC J2CE3221-20L0A-179	Electric Vehicles Charging (EV Charger)	Unshielded	240 VAC	50 °C	-30 ░C	32 A	Cable	UL	Black	United States	2 3	20 ft	6.1 m	Male Plug to Leads	Angled J1772	10 AWG
ITT Cannon, LLC J2CE3221-20L0A	Electric Vehicles Charging (EV Charger)	Unshielded	240 VAC	50 °C	-30 ░C	32 A	Cable	UL	Black	United States	2 3	20 ft	6.1 m	Male Plug to Leads	Angled J1772	10 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

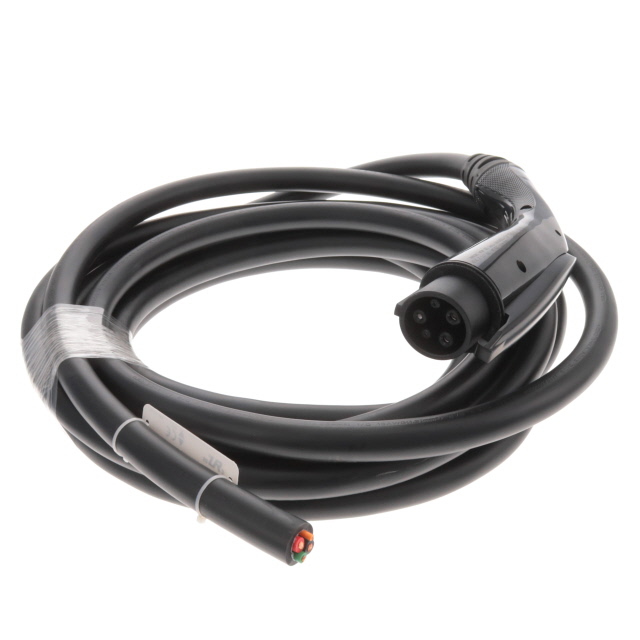

20.00' (6.10m) Power Cord Adapter Black J1772, Angled To Cable
