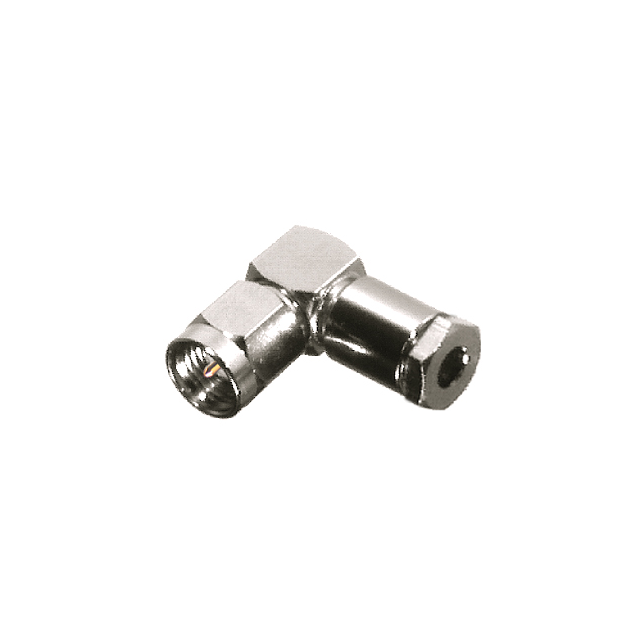

RSA-3110-C

Active

RF Industries

SMA MALE R/A CLAMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

SMA MALE R/A CLAMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RSA-3110-C

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Voltage Rating	Connector Type	Shield Termination	Body Material	Mounting Type	Center Contact Material	Dielectric Material	Number of Ports	Impedance	Center Contact Plating	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Connector Style	Frequency - Max [Max]	Contact Termination
RF Industries RSA-3110-C	500 V	Male Pin Plug	Clamp	Brass	Free Hanging (In-Line) Right Angle	Brass	Polytetrafluoroethylene (PTFE)	1	50 Ohms	Gold	Silver	-65 ░C	165 °C	Nickel	SMA	12.4 GHz	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
