34KM-K112-99W
ActiveNMB TECHNOLOGIES

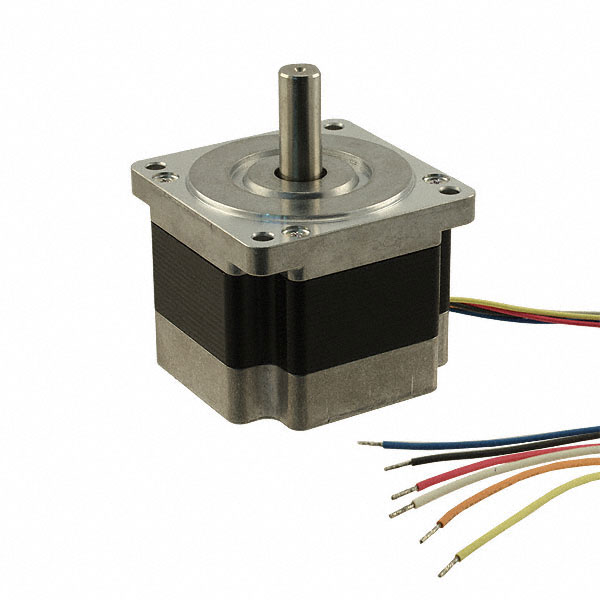

STEPPER MOTOR, STANDARD HYBRID, 4800 MN-M, 3 A
Deep-Dive with AI
Search across all available documentation for this part.
34KM-K112-99W
ActiveNMB TECHNOLOGIES
STEPPER MOTOR, STANDARD HYBRID, 4800 MN-M, 3 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 34KM-K112-99W |
|---|---|
| Coil Resistance | 1.5 Ohms |
| Coil Type | Unipolar |
| Current Rating (Amps) | 3 A |
| Diameter - Shaft [diameter] | 14 mm |
| Diameter - Shaft [diameter] | 0.551 in |
| Features | Double Flatted Shaft |
| Length - Shaft and Bearing [x] | 37 mm |
| Length - Shaft and Bearing [x] | 1.457 in |
| Mounting Hole Spacing | 2.74 in |
| Mounting Hole Spacing | 69.6 mm |
| NEMA Frame Size | 34 |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Rotor Inertia | 2400 gcm˛ |
| Size / Dimension [x] | 3.347 in |
| Size / Dimension [x] | 85 mm |
| Size / Dimension [y] | 3.347 in |
| Size / Dimension [y] | 85 mm |
| Step Angle | 1.8 ° |
| Steps per Revolution | 200 |
| Termination Style | Wire Leads |
| Torque - Holding (oz-in / mNm) | 4800 mNm |
| Torque - Holding (oz-in / mNm) | 679.82 oz-in |
| Type | Hybrid, Dual Shaft |
| Voltage - Rated | 24 VDC |
| Weight | 6.4 lbs |
| Weight | 2.9 kg |
34KM Series
| Part | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Current Rating (Amps) | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Features | Accuracy | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Rotor Inertia | Mounting Hole Spacing | Mounting Hole Spacing | Steps per Revolution | NEMA Frame Size | Coil Resistance | Voltage - Rated | Step Angle | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Termination Style | Step Angle | Operating Temperature [Min] [custom] | Operating Temperature [Max] [custom] | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | 37 mm | 1.457 in | 4.8 A | 2500 mNm | 354.07 oz-in | 14 mm | 0.551 in | Double Flatted Shaft | Ý5% | -10 °C | 50 °C | Unipolar | 1200 gcm˛ | 2.74 in | 69.6 mm | 200 | 34 | 0.45 Ohms | 24 VDC | 1.8¯ | 3.347 in | 3.347 in | 85 mm | 85 mm | Hybrid Dual Shaft | Wire Leads | |||||
NMB TECHNOLOGIES | 37 mm | 1.457 in | 4.7 A | 6700 mNm | 948.92 oz-in | 14 mm | 0.551 in | Double Flatted Shaft | Unipolar | 3700 gcm˛ | 2.74 in | 69.6 mm | 200 | 34 | 0.85 Ohms | 24 VDC | 3.347 in | 3.347 in | 85 mm | 85 mm | Hybrid Dual Shaft | Wire Leads | 1.8 ° | -10 °C | 50 °C | 4 kg | 8.8 lbs | ||||
NMB TECHNOLOGIES | 37 mm | 1.457 in | 4.8 A | 4800 mNm | 679.82 oz-in | 14 mm | 0.551 in | Double Flatted Shaft | Unipolar | 2400 gcm˛ | 2.74 in | 69.6 mm | 200 | 34 | 24 VDC | 3.347 in | 3.347 in | 85 mm | 85 mm | Hybrid | Wire Leads | 1.8 ° | -10 °C | 50 °C | 2.9 kg | 6.4 lbs | |||||
NMB TECHNOLOGIES | 37 mm | 1.457 in | 1.9 A | 4800 mNm | 679.82 oz-in | 14 mm | 0.551 in | Double Flatted Shaft | Unipolar | 2400 gcm˛ | 2.74 in | 69.6 mm | 200 | 34 | 3.9 Ohms | 24 VDC | 3.347 in | 3.347 in | 85 mm | 85 mm | Hybrid | Wire Leads | 1.8 ° | -10 °C | 50 °C | 2.9 kg | 6.4 lbs | ||||
NMB TECHNOLOGIES | 37 mm | 1.457 in | 3 A | 4800 mNm | 679.82 oz-in | 14 mm | 0.551 in | Double Flatted Shaft | Unipolar | 2400 gcm˛ | 2.74 in | 69.6 mm | 200 | 34 | 1.5 Ohms | 24 VDC | 3.347 in | 3.347 in | 85 mm | 85 mm | Hybrid Dual Shaft | Wire Leads | 1.8 ° | -10 °C | 50 °C | 2.9 kg | 6.4 lbs | ||||
NMB TECHNOLOGIES | 37 mm | 1.457 in | 1.9 A | 4800 mNm | 679.82 oz-in | 14 mm | 0.551 in | Double Flatted Shaft | Unipolar | 2400 gcm˛ | 2.74 in | 69.6 mm | 200 | 34 | 3.9 Ohms | 24 VDC | 3.347 in | 3.347 in | 85 mm | 85 mm | Hybrid Dual Shaft | Wire Leads | 1.8 ° | -10 °C | 50 °C | 2.9 kg | 6.4 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
34KM Series
Unipolar Stepper Motor Hybrid, Dual Shaft Frame Size 34 200.0 Step 3 A 24VDC
