2049-2X04G00U

Active

Oupiin

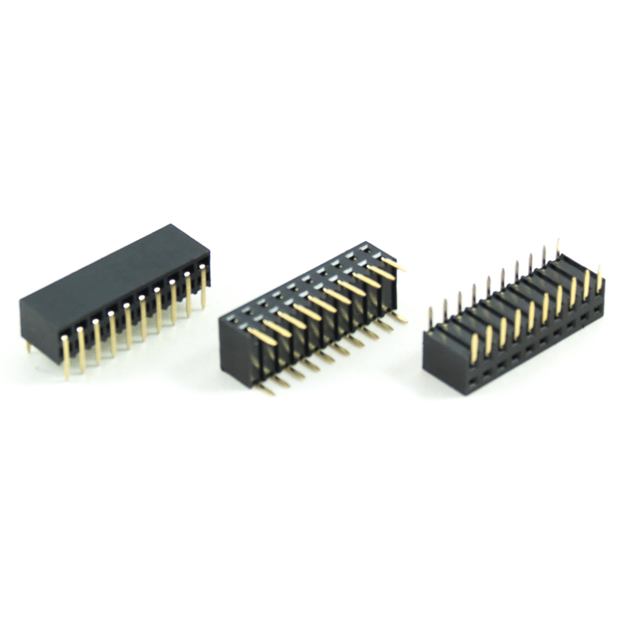

PCB SOCKET, DOUBLE ROW, 8 PINS,

Search across all available documentation for this part.

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 8 PINS,

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2049-2X04G00U	2049 Series

Connector Type	Socket	Socket
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Height	5.97 mm	5.97 mm
Insulation Height	0.235 in	0.235 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	8	8 - 10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Solder	Solder

PCB SOCKET, DOUBLE ROW, 8 PINS,

Part	Insulation Height	Insulation Height	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Contact Finish - Mating	Material Flammability Rating	Insulation Material	Connector Type	Contact Length - Post	Contact Length - Post [x]	Mounting Type	Contact Finish Thickness - Mating	Contact Type	Contact Finish - Post	Current Rating (Amps)	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Positions Loaded	Fastening Type	Number of Rows	Number of Positions
Oupiin 2049-2X04G00U	5.97 mm	0.235 in	Solder	105 ░C	-55 °C	Square	Gold	UL94 V-0	Polybutylene Terephthalate (PBT), Glass Filled	Socket	3.2 mm	0.126 in	Through Hole, Right Angle	Flash	Female Socket	Gold	2 A	Flash	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	All	Push-Pull	2	8
Oupiin 2049-2X05G00U	5.97 mm	0.235 in	Solder	105 ░C	-55 °C	Square	Gold	UL94 V-0	Polybutylene Terephthalate (PBT), Glass Filled	Socket	3.2 mm	0.126 in	Through Hole, Right Angle	Flash	Female Socket	Gold	2 A	Flash	0.1 in	2.54 mm	2.54 mm	0.1 in	Phosphor Bronze	All	Push-Pull	2	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Socket Connector 0.100" (2.54mm) Through Hole, Right Angle Gold
