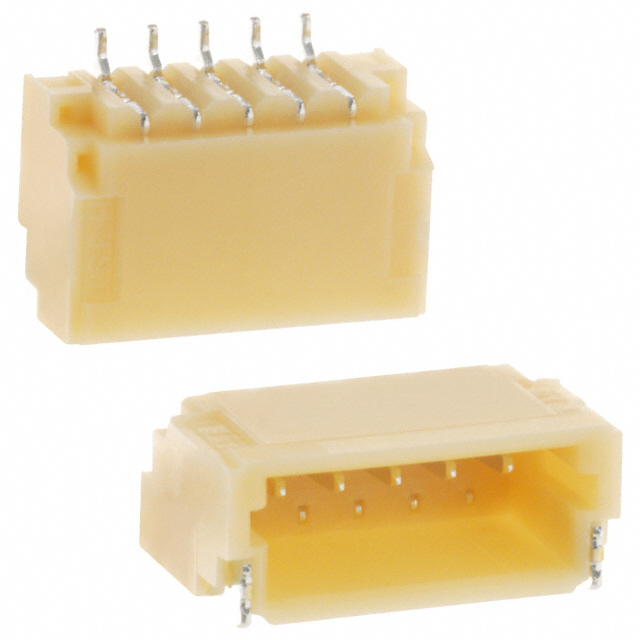

SM05B-SRSS-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 5POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
SM05B-SRSS-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 5POS 1MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM05B-SRSS-TB |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 0.114 " |
| Insulation Height | 2.9 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
SM05B-SR Series
| Part | Insulation Color | Shrouding | Material Flammability Rating | Connector Type | Termination | Contact Type | Insulation Material | Style | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage Rating | Contact Shape | Fastening Type | Insulation Height | Insulation Height | Number of Rows | Number of Positions Loaded | Contact Material | Features | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Natural | Shrouded - 4 Wall | UL94 V-0 | Header | Solder | Male Pin | Nylon Polyamide (PA) | Board to Cable/Wire | -25 °C | 85 °C | Surface Mount Right Angle | 50 V | Square | Push-Pull | 0.114 " | 2.9 mm | 1 | All | Copper Alloy | Solder Retention | Tin | 0.039 in | 1 mm | ||
JST Sales America Inc. | Natural | Shrouded - 4 Wall | UL94 V-0 | Header | Solder | Male Pin | Nylon Polyamide (PA) | Board to Cable/Wire | -25 °C | 85 °C | Surface Mount Right Angle | 50 V | Square | Push-Pull | 0.114 " | 2.9 mm | 1 | All | Copper Alloy | Solder Retention | 0.039 in | 1 mm | Gold | 0.7 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.86 | |
| 10 | $ 0.65 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.39 | |||
| Digi-Reel® | 1 | $ 0.86 | ||
| 10 | $ 0.65 | |||
| 100 | $ 0.50 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.39 | |||
| Tape & Reel (TR) | 3000 | $ 0.35 | ||
| 6000 | $ 0.32 | |||
| 9000 | $ 0.31 | |||
| 15000 | $ 0.30 | |||
| 21000 | $ 0.29 | |||
| 30000 | $ 0.28 | |||
Description
General part information
SM05B-SR Series
Connector Header Surface Mount, Right Angle 5 position 0.039" (1.00mm)
