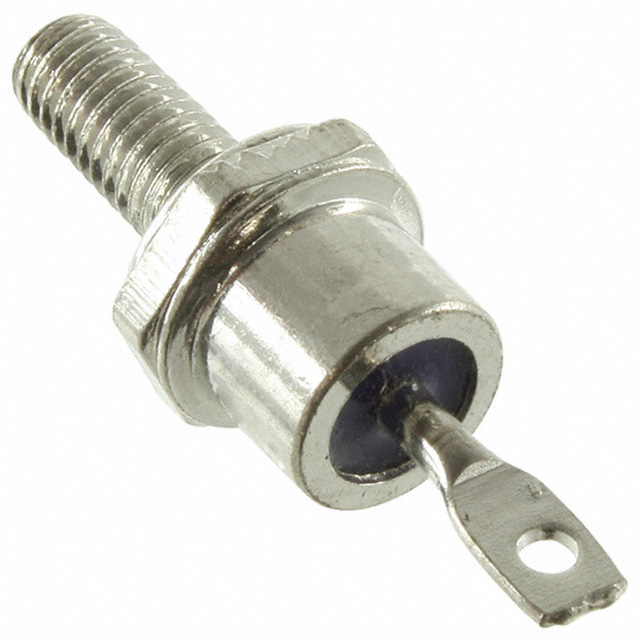

1N3673A

Active

GeneSiC Semiconductor

DIODE GEN PURP 1KV 12A DO4

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE GEN PURP 1KV 12A DO4

Technical Specifications

Parameters and characteristics for this part

Specification	1N3673A

Current - Average Rectified (Io)	12 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-4
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.1 V

Part	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Package / Case	Current - Reverse Leakage @ Vr	Supplier Device Package	Mounting Type	Technology
GeneSiC Semiconductor 1N3673A	12 A	1.1 V	1000 V	200 C	-65 C	Standard Recovery >500ns	200 mA	DO-203AA DO-4 Stud	10 µA	DO-4	Chassis Stud Mount	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1000 V 12A Chassis, Stud Mount DO-4
