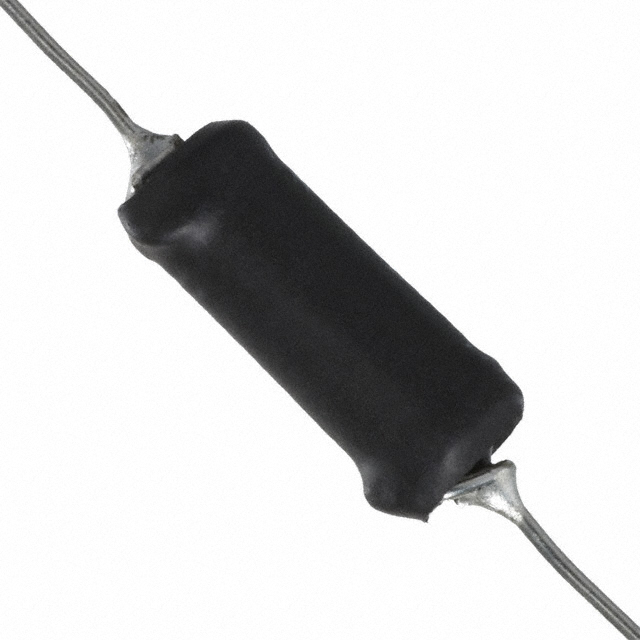

5800-222-TR-RC

Obsolete

Bourns Inc.

FIXED IND 2.2MH 170MA 5.3 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5800-222-TR-RC

Obsolete

Bourns Inc.

FIXED IND 2.2MH 170MA 5.3 OHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5800-222-TR-RC

Current - Saturation (Isat)	240 mA
Current Rating (Amps)	0.17 A
DC Resistance (DCR) [Max]	5.3 Ohm
Inductance	2.2 mH
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Shielding	Unshielded
Size / Dimension	6.99 mm, 17.78 mm
Size / Dimension [diameter]	0.275 "
Size / Dimension [x]	0.7 in
Tolerance	10 %
Type	Wirewound, Drum Core

5800 Series

Part	Mounting Type	Current Rating (Amps)	Current - Saturation (Isat)	Inductance	Shielding	DC Resistance (DCR) [Max]	Tolerance	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Material - Core
Bourns Inc. 5800-120-TR-RC	Through Hole	2 A	3.4 A	12 µH	Unshielded	35 mOhm	10 %	0.7 in	0.275 "	6.99 mm 17.78 mm	105 ░C	-55 °C	Axial	Drum Core Wirewound	Ferrite
Bourns Inc. 5800-472	Through Hole	110 mA	170 mA	4.7 mH	Unshielded	12.5 Ohm	10 %	0.7 in	0.275 "	6.99 mm 17.78 mm	105 ░C	-55 °C	Axial	Drum Core Wirewound	Ferrite
Bourns Inc. 5800-5R6-TR-RC	Through Hole	2.5 A	5 A	5.6 µH	Unshielded	23 mOhm	10 %	0.7 in	0.275 "	6.99 mm 17.78 mm	105 ░C	-55 °C	Axial	Drum Core Wirewound	Ferrite
Bourns Inc. 5800-472-TR-RC	Through Hole	110 mA	170 mA	4.7 mH	Unshielded	12.5 Ohm	10 %	0.7 in	0.275 "	6.99 mm 17.78 mm	105 ░C	-55 °C	Axial	Drum Core Wirewound	Ferrite
Bourns Inc. 5800-100	Through Hole	2.1 A	3.6 A	10 µH	Unshielded	32 mOhm	10 %	0.7 in	0.275 "	6.99 mm 17.78 mm	105 ░C	-55 °C	Axial	Drum Core Wirewound	Ferrite
Bourns Inc. 5800-183-TR-RC	Through Hole	58 mA	80 mA	18 mH	Unshielded	41 Ohm	10 %	0.7 in	0.275 "	6.99 mm 17.78 mm	105 ░C	-55 °C	Axial	Drum Core Wirewound	Ferrite
Bourns Inc. 5800-560	Through Hole	1 A		56 µH	Unshielded	150 mOhm	10 %	0.7 in	0.275 "	6.99 mm 17.78 mm	105 ░C	-55 °C	Axial	Drum Core Wirewound	Ferrite
Bourns Inc. 5800-272	Through Hole	150 mA	220 mA	2.7 mH	Unshielded	6.6 Ohm	10 %	0.7 in	0.275 "	6.99 mm 17.78 mm	105 ░C	-55 °C	Axial	Drum Core Wirewound	Ferrite
Bourns Inc. 5800-222-TR-RC	Through Hole	0.17 A	240 mA	2.2 mH	Unshielded	5.3 Ohm	10 %	0.7 in	0.275 "	6.99 mm 17.78 mm	105 ░C	-55 °C	Axial	Drum Core Wirewound	Ferrite
Bourns Inc. 5800-822-RC	Through Hole	86 mA	130 mA	8.2 mH	Unshielded	19.7 Ohm	10 %	0.7 in	0.275 "	6.99 mm 17.78 mm	105 ░C	-55 °C	Axial	Drum Core Wirewound	Ferrite

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

5800 Series

2.2 mH Unshielded Drum Core, Wirewound Inductor 170 mA 5.3Ohm Max Axial
