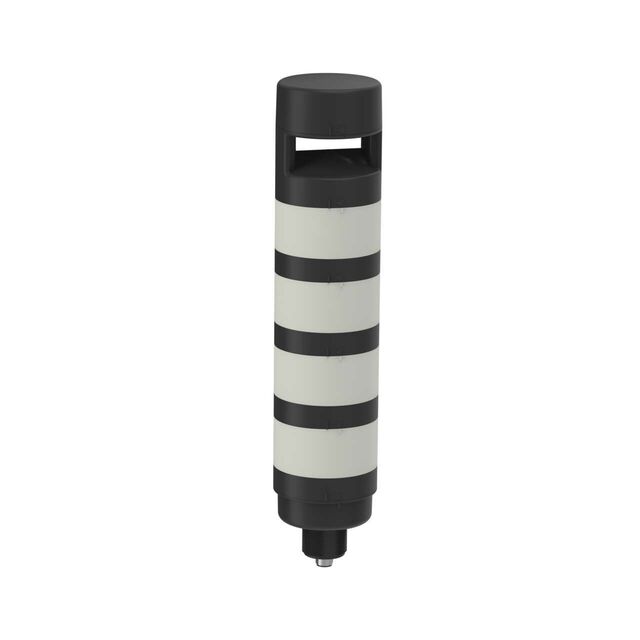

TL70BGYRAPQ

Active

BANNER ENGINEERING

COMPLETE UNIT MULTI COLOR 5STACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TL70BGYRAPQ

Active

BANNER ENGINEERING

COMPLETE UNIT MULTI COLOR 5STACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL70BGYRAPQ

Features	Dip Switch, Alarm
Function - Audible	Programmable
Function - Lighting	Steady
Ingress Protection	IP50
Light Color	Yellow, Red, Green, Blue
Number of Stacks	5
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Termination Style	M12
Type	Complete Unit
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	12 V

TL70BG Series

Part	Ingress Protection	Termination Style	Number of Stacks	Operating Temperature [Max]	Operating Temperature [Min]	Function - Audible	Features	Function - Lighting	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Light Color
BANNER ENGINEERING TL70BGYRAPQ	IP50	M12	5	50 °C	-20 C	Programmable	Alarm Dip Switch	Steady	12 V	30 VDC	Complete Unit	Blue Green Red Yellow
BANNER ENGINEERING TL70BGYRAT	IP65 - Dust Tight Water Resistant	Wire Leads	4	50 °C	-40 °C	Multiple	Alarm Dip Switch	Steady	12 V	30 VDC	Complete Unit	Blue Green Red Yellow
BANNER ENGINEERING TL70BGYRWQ	IP65 - Dust Tight Water Resistant	Connector	5	50 °C	-40 °C			Steady	12 V	30 VDC	Complete Unit	Blue Green Red White Yellow
BANNER ENGINEERING TL70BGRAQ	IP65 - Dust Tight Water Resistant	Connector	3	50 °C	-40 °C	Multiple	Alarm	Steady	12 V	30 VDC	Complete Unit	Blue Green Red
BANNER ENGINEERING TL70BGYR	IP65 - Dust Tight Water Resistant	Wire Leads	4	50 °C	-40 °C		Dip Switch	Steady	12 V	30 VDC	Complete Unit	Blue Green Red Yellow
BANNER ENGINEERING TL70BGRAQ8	IP65 - Dust Tight Water Resistant	M12	4	50 °C	-40 °C	Multiple	Alarm Dip Switch	Steady	12 V	30 VDC	Complete Unit	Blue Green Red
BANNER ENGINEERING TL70BGRQ	IP65 - Dust Tight Water Resistant	M12	3	50 °C	-40 °C		Dip Switch	Steady	12 V	30 VDC	Complete Unit	Blue Green Red
BANNER ENGINEERING TL70BGQ	IP65 - Dust Tight Water Resistant	M12	2	50 °C	-40 °C		Dip Switch	Steady	12 V	30 VDC	Complete Unit	Blue Green
BANNER ENGINEERING TL70BGYRT	IP65 - Dust Tight Water Resistant	Wire Leads	4	50 °C	-40 °C		Dip Switch	Steady	12 V	30 VDC	Complete Unit	Blue Green Red Yellow
BANNER ENGINEERING TL70BGYRQP	IP65 - Dust Tight Water Resistant	M12	4	50 °C	-40 °C		Dip Switch	Steady	12 V	30 VDC	Complete Unit	Blue Green Red Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 537.00
Newark	Each	1	$ 537.00

Description

General part information

TL70BG Series

Stack Light Complete Unit Blue, Green, Red, Yellow LED Alarm, Dip Switch M12

Documents

Technical documentation and resources
