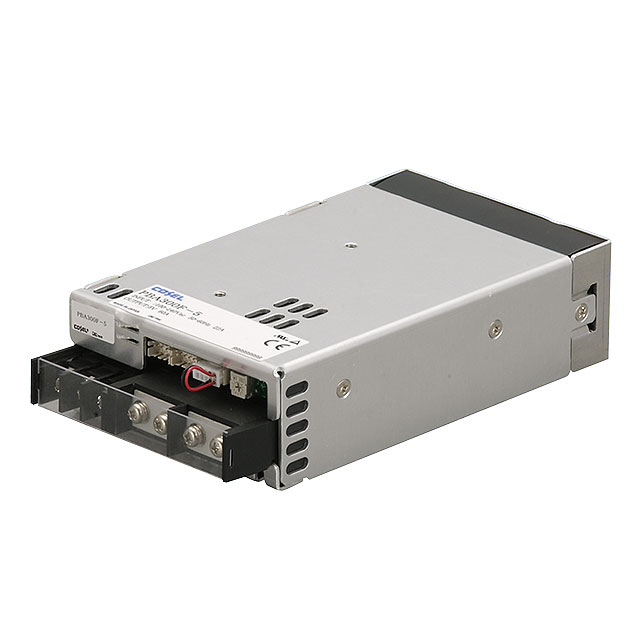

PBA300F-24-N1

LTB

Cosel USA, Inc.

AC/DC POWER SUPPLY SINGLE-OUT 24V 14A 336W

PBA300F-24-N1

LTB

Cosel USA, Inc.

AC/DC POWER SUPPLY SINGLE-OUT 24V 14A 336W

Description Specifications Series Pricing CAD Documents

Description

General part information

PBA300 Series

Switching Power Supplies

Technical Specifications

Parameters and characteristics for this part

Specification	PBA300F-24-N1

Applications	ITE (Commercial)
Approval Agency	cURus, TUV, CE
Current - Output 1	14 A
Efficiency	82 %
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Size / Dimension Height	1.65 in
Size / Dimension Length	6.69 in
Size / Dimension Width	4.02 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	3 kV
Voltage - Output 1	24 V

PBA300 Series

Switching Power Supplies

...

Part	Minimum Load Required	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output 1	Type	Voltage - Output 1	Mounting Type	Applications	Efficiency	Number of Outputs	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Approval Agency	Voltage - Isolation	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum
Cosel USA, Inc. PBA300F-36-N1	No	70 °C	-20 °C	9 A	Enclosed	36 V	Chassis Mount	ITE (Commercial)	84 %	1	1.65 in	6.69 in	4.02 in	CE cURus TUV	3 kV	85 VAC	264 V
Cosel USA, Inc. PBA300F-5-CF4	No	70 °C	-20 °C	60 A	Enclosed	5 V	Chassis Mount	ITE (Commercial)	77 %	1	1.65 in	6.69 in	4.02 in	CE cURus TUV	3 kV	85 VAC	264 V
Cosel USA, Inc. PBA300F-48-CN1	No	70 °C	-20 °C	7 A	Enclosed	48 V	Chassis Mount	ITE (Commercial)	82 %	1	1.65 in	6.69 in	4.02 in	CE cURus TUV	3 kV	85 VAC	264 V
Cosel USA, Inc. PBA300F-48-CF3	No	70 °C	-20 °C	7 A	Enclosed	48 V	Chassis Mount	ITE (Commercial)	82 %	1	1.65 in	6.69 in	4.02 in	CE cURus TUV	3 kV	85 VAC	264 V
Cosel USA, Inc. PBA300F-12-CG	No	70 °C	-20 °C	27 A	Enclosed	12 V	Chassis Mount	ITE (Commercial)	81 %	1	1.65 in	6.69 in	4.02 in	CE cURus TUV	3 kV	85 VAC	264 V
Cosel USA, Inc. PBA300F-24-N1	No	70 °C	-20 °C	14 A	Enclosed	24 V	Chassis Mount	ITE (Commercial)	82 %	1	1.65 in	6.69 in	4.02 in	CE cURus TUV	3 kV	85 VAC	264 V
Cosel USA, Inc. PBA300F-12-N1	No	70 °C	-20 °C	27 A	Enclosed	12 V	Chassis Mount	ITE (Commercial)	81 %	1	1.65 in	6.69 in	4.02 in	CE cURus TUV	3 kV	85 VAC	264 V
Cosel USA, Inc. PBA300F-24-CF4	No	70 °C	-20 °C	14 A	Enclosed	24 V	Chassis Mount	ITE (Commercial)	82 %	1	1.65 in	6.69 in	4.02 in	CE cURus TUV	3 kV	85 VAC	264 V
Cosel USA, Inc. PBA300F-36-GF4	No	70 °C	-20 °C	9 A	Enclosed	36 V	Chassis Mount	ITE (Commercial)	84 %	1	1.65 in	6.69 in	4.02 in	CE cURus TUV	3 kV	85 VAC	264 V
Cosel USA, Inc. PBA300F-5-GU	No	70 °C	-20 °C	60 A	Enclosed	5 V	Chassis Mount	ITE (Commercial)	77 %	1	1.65 in	6.69 in	4.02 in	CE cURus TUV	3 kV	85 VAC	264 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
