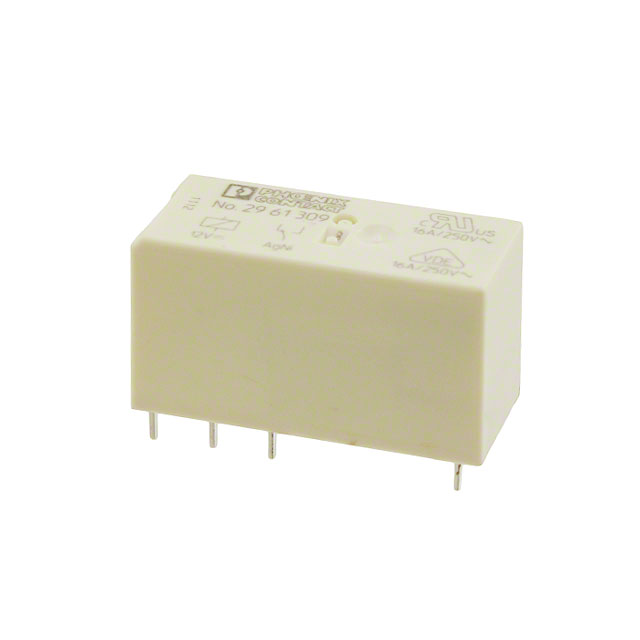

POWER RELAY 12VDC 16A SPDT(29MM 12.7MM 15.7MM) THT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2961309
ActivePhoenix Contact
POWER RELAY 12VDC 16A SPDT(29MM 12.7MM 15.7MM) THT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2961309 | 29613 Series |
|---|---|---|
| Approval Agency | cULus, EAC, UR | cULus, EAC, UR |
| Coil Current | 33 mA | 4.1 - 38 mA |
| Coil Resistance | 360 Ohms | 2 - 1440 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 4.5 - 110 VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C), SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi), Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 16 A | 6 - 16 A |
| Mounting Type | Through Hole | Through Hole |
| Operate Time | 7 ms | 5 - 8 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 3 ms | 2.5 - 3 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | PC Pin | PC Pin |
29613 Series
POWER RELAY, SPDT, 6A, 250A ROHS COMPLIANT: YES
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Mounting Type | Release Time | Coil Type | Coil Voltage | Contact Material | Contact Form | Termination Style | Contact Rating (Current) | Operate Time | Approval Agency | Relay Type | Coil Resistance | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2961338 | 85 °C | -40 °C | 4.1 mA | Through Hole | 3 ms | Non Latching | 110 VDC | Silver Nickel (AgNi) | SPDT (1 Form C) | PC Pin | 16 A | 7 ms | cULus, EAC, UR | General Purpose | 26.6 kOhms | 250 VAC, 250 VDC |
Phoenix Contact 2961309 | 85 °C | -40 °C | 33 mA | Through Hole | 3 ms | Non Latching | 12 VDC | Silver Nickel (AgNi) | SPDT (1 Form C) | PC Pin | 16 A | 7 ms | cULus, EAC, UR | General Purpose | 360 Ohms | 250 VAC, 250 VDC |
Phoenix Contact 2961367 | 85 °C | -40 °C | 38 mA | Through Hole | 2.5 ms | Non Latching | 4.5 VDC | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | PC Pin | 6 A | 5 ms | cULus, EAC, UR | General Purpose | 119 Ohms | 250 VAC, 250 VDC |
Phoenix Contact 2961325 | 85 °C | -40 °C | 8.2 mA | Through Hole | 3 ms | Non Latching | 60 VDC | Silver Nickel (AgNi) | SPDT (1 Form C) | PC Pin | 16 A | 7 ms | cULus, EAC, UR | General Purpose | 7.34 kOhms | 250 VAC, 250 VDC |
Phoenix Contact 2961383 | 85 °C | -40 °C | 9 mA | Through Hole | 2.5 ms | Non Latching | 18 VDC | Silver Tin Oxide (AgSnO) | SPDT (1 Form C) | PC Pin | 6 A | 5 ms | cULus, EAC, UR | General Purpose | 2 kOhms | 250 VAC, 250 VDC |
Phoenix Contact 2961341 | 85 °C | -40 °C | 17 mA | Through Hole | 3 ms | Non Latching | 24 VDC | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | PC Pin | 16 A | 8 ms | cULus, EAC, UR | General Purpose | 1440 Ohms | 250 VAC, 250 VDC |
Phoenix Contact 2961312 | 85 °C | -40 °C | 17 mA | Through Hole | 3 ms | Non Latching | 24 VDC | Silver Nickel (AgNi) | SPDT (1 Form C) | PC Pin | 16 A | 7 ms | cULus, EAC, UR | General Purpose | 1440 Ohms | 250 VAC, 250 VDC |
