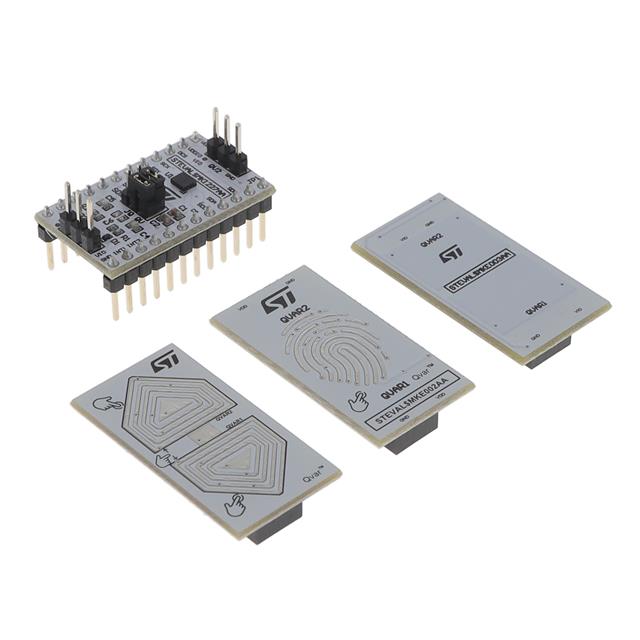

STEVAL-MKI227KA
ActiveEVALUATION KIT, LSM6DSV16XTR, 3-AXIS GYROSCOPE & ACCELEROMETER, QVAR ELECTROSTATIC SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
STEVAL-MKI227KA
ActiveEVALUATION KIT, LSM6DSV16XTR, 3-AXIS GYROSCOPE & ACCELEROMETER, QVAR ELECTROSTATIC SENSOR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-MKI227KA |
|---|---|
| Contents | Board(s) |
| Function | Accelerometer, Gyroscope |
| Interconnect System | DIL24 |
| Platform | Professional MEMS Tool |
| Primary Attributes | ±1000, ±250, ±125, ±4000, ±8, ±4, ±500, ±16, ±2000, ±2 |
| Secondary Attributes | I2C/SPI Interface(s) |
| Suggested Programming Environment | Unico |
| Type | Sensor |
| Utilized IC / Part | LSM6DSV16X |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STEVAL-MKI241KA Series
The STEVAL-MKI234KA evaluation kit is based on the LSM6DSV16BX IMU (inertial measurement unit) with a Qvar electrostatic sensor and three different electrodes (swipe, finger, and generic) to make it compatible with the STEVAL-MKI109V3. The kit provides the complete LSM6DSV16BX pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. The STEVAL-MKE00xAA can be plugged into the STEVAL-MKI234A board.
This adapter is supported by the STEVAL-MKI109V3 motherboard, which includes a high-performance 32-bit microcontroller functioning as a bridge between the sensor and a PC.
It is also possible to plug the STEVAL-MKI234A board into an X-NUCLEO-IKS01A3 expansion board.
