TRF1001
ActiveMicrochip Technology

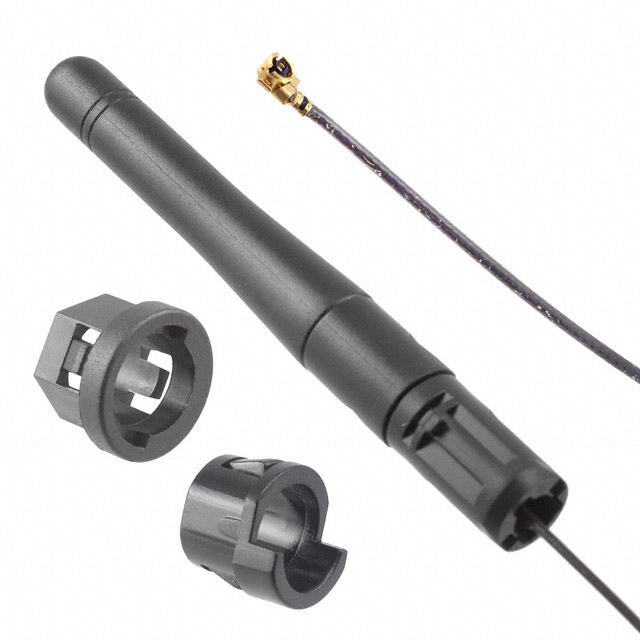

RF ANT 2.4GHZ WHIP/TILT PANEL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TRF1001
ActiveMicrochip Technology
RF ANT 2.4GHZ WHIP/TILT PANEL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TRF1001 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | Wi-Fi, Zigbee™, MiWi |
| Features | Cable - 150mm |
| Gain | 2 dBic |
| Height (Max) | 62 mm |
| Height (Max) | 2.441 in |
| Number of Bands | 1 |
| RF Family/Standard | 802.15.4, WiFi |
| Termination | IPEX MHF1, U.FL (UMCC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TRF1001 Series
RF ANT 2.4GHZ WHIP/TILT PANEL MT
| Part | Termination | Gain | Antenna Type | RF Family/Standard | Applications | Number of Bands | Features | Height (Max) | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|
Microchip Technology TRF1001 | IPEX MHF1, U.FL (UMCC) | 2 dBic | Tilt, Whip | 802.15.4, WiFi | MiWi, Wi-Fi, Zigbee™ | 1 | Cable - 150mm | 62 mm | 2.441 in |
Description
General part information
TRF1001 Series
RF ANTENNA MiWi, Wi-Fi, Zigbee™ Whip, Tilt U.FL (UMCC), IPEX MHF1 Panel Mount
Documents
Technical documentation and resources
