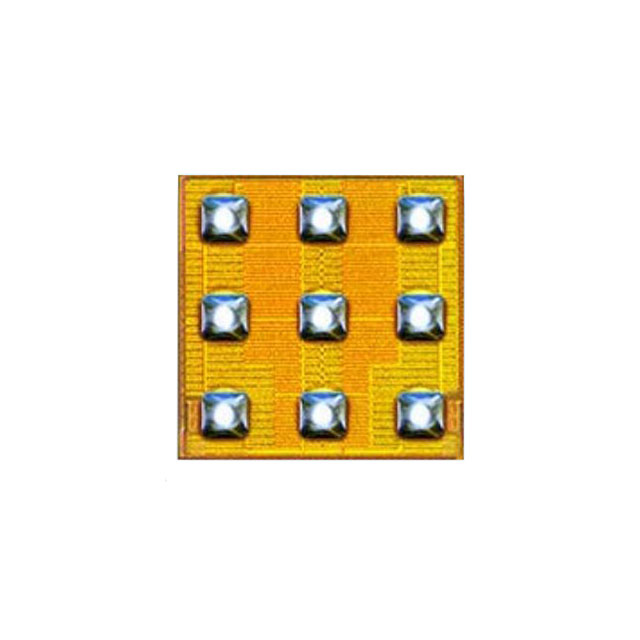

EPC2221

Active

EPC

GANFET 2N-CH 100V 5A DIE

Search across all available documentation for this part.

Active

EPC

GANFET 2N-CH 100V 5A DIE

Technical Specifications

Parameters and characteristics for this part

Specification	EPC2221

Configuration	2 N-Channel (Dual) Common Source
Current - Continuous Drain (Id) @ 25°C	5 A
Drain to Source Voltage (Vdss)	100 V
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	Die
Supplier Device Package	Die
Technology	GaNFET (Gallium Nitride)

GANFET 2N-CH 100V 5A DIE

Part	Drain to Source Voltage (Vdss)	Configuration	Mounting Type	Technology	Operating Temperature	Current - Continuous Drain (Id) @ 25°C	Package / Case	Supplier Device Package
EPC EPC2221	100 V	2 N-Channel (Dual) Common Source	Surface Mount	GaNFET (Gallium Nitride)	150 °C	5 A	Die	Die

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 100V 5A Surface Mount Die
