EEG.0B.303.CLL

Active

LEMO

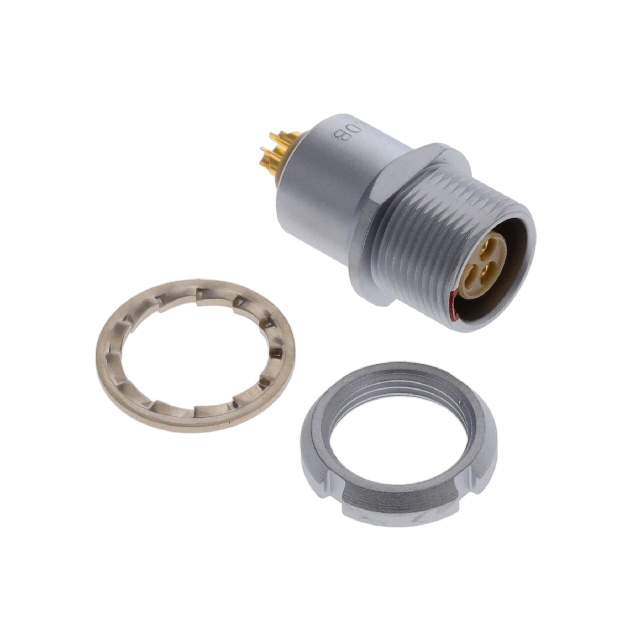

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EEG.0B.303.CLL

Active

LEMO

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.74
		10	$ 21.66
		25	$ 20.73
		50	$ 20.06
		100	$ 19.39
		250	$ 18.32
		500	$ 17.79

Description

General part information

EEG.0B Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EEG.0B.303.CLL	EEG.0B Series

Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	8 A	2.5 - 8 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Positions	-	4 - 7
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	303	303 - 307
Shielding	Shielded	Shielded
Termination	-	Crimp, Solder

EEG.0B Series

CONN RCPT FMALE 4POS GOLD CRIMP

Part	Current Rating (Amps)	Shell Material	Contact Material	Mounting Feature	Orientation	Contact Finish - Mating	Color	Fastening Type	Termination	Shielding	Primary Material	Ingress Protection	Number of Positions	Shell Finish	Material Flammability Rating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Mounting Type
LEMO EEG.0B.304.CYM	7 A	Brass	Bronze	Bulkhead - Front Side Nut	G	Gold	Silver	Push-Pull	Crimp	Shielded	Metal	IP50	4	Chrome	UL94 V-0	304	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Receptacle, Female Sockets
LEMO EEG.0B.307.CLN	2.5 A	Brass	Bronze	Bulkhead - Front Side Nut	G	Gold	Silver	Push-Pull	Solder	Shielded	Metal	IP50	7	Chrome	UL94 V-0	307	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Receptacle, Female Sockets	Panel Mount, Through Hole
LEMO EEG.0B.306.CLV	2.5 A	Brass	Bronze	Bulkhead - Front Side Nut	G	Gold	Silver	Push-Pull	Solder	Shielded	Metal	IP50	6	Chrome	UL94 V-0	306	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Receptacle, Female Sockets	Panel Mount, Right Angle, Through Hole
LEMO EEG.0B.307.CLV	2.5 A	Brass	Bronze	Bulkhead - Front Side Nut	G	Gold	Silver	Push-Pull	Solder	Shielded	Metal	IP50	7	Chrome	UL94 V-0	307	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Receptacle, Female Sockets	Panel Mount, Right Angle, Through Hole
LEMO EEG.0B.304.CLL	7 A	Brass	Bronze	Bulkhead - Front Side Nut	G	Gold	Silver	Push-Pull		Shielded	Metal	IP50	4	Chrome	UL94 V-0	304	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Receptacle, Female Sockets
LEMO EEG.0B.303.CLL	8 A	Brass	Bronze	Bulkhead - Front Side Nut	G	Gold	Silver	Push-Pull		Shielded	Metal	IP50		Chrome	UL94 V-0	303	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Receptacle, Female Sockets
LEMO EEG.0B.303.CYM	8 A	Brass	Bronze	Bulkhead - Front Side Nut	G	Gold	Silver	Push-Pull	Crimp	Shielded	Metal	IP50		Chrome	UL94 V-0	303	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Receptacle, Female Sockets
LEMO EEG.0B.305.CLL	6.5 A	Brass	Bronze	Bulkhead - Front Side Nut	G	Gold	Silver	Push-Pull		Shielded	Metal	IP50		Chrome	UL94 V-0	305	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Receptacle, Female Sockets
LEMO EEG.0B.305.CLV	6 A	Brass	Bronze	Bulkhead - Front Side Nut	G	Gold	Silver	Push-Pull	Solder	Shielded	Metal	IP50		Chrome	UL94 V-0	305	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Receptacle, Female Sockets	Panel Mount, Right Angle, Through Hole
LEMO EEG.0B.306.CLL	2.5 A	Brass	Bronze	Bulkhead - Front Side Nut	G	Gold	Silver	Push-Pull		Shielded	Metal	IP50	6	Chrome	UL94 V-0	306	-55 °C	250 °C	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Receptacle, Female Sockets
