ST2189QTR
ObsoleteSTMicroelectronics
IC TRNSLTR BIDIRECTIONAL 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST2189QTR
ObsoleteSTMicroelectronics
IC TRNSLTR BIDIRECTIONAL 20QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST2189QTR |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 8 |
| Data Rate | 86 Mbps, 92 Mbps |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Tri-State, Non-Inverted |

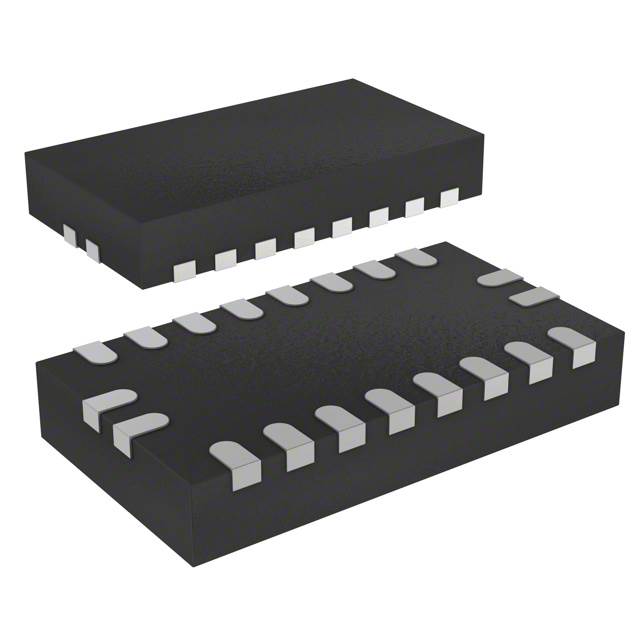

| Package / Case | 20-UFQFN |
| Supplier Device Package | 20-QFN |
| Supplier Device Package [x] | 3.2 |
| Supplier Device Package [y] | 1.8 |
| Translator Type | Voltage Level |
| Voltage - VCCA [Max] | 3.6 V |
| Voltage - VCCA [Min] | 1.65 V |
| Voltage - VCCB [Max] | 3.6 V |
| Voltage - VCCB [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ST2189 Series
Voltage Level Translator Bidirectional 1 Circuit 8 Channel 86Mbps, 92Mbps 20-QFN (3.2x1.8)
