1274AS-H-5R6N=P3

Active

Murata Electronics

FIXED IND

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1274AS-H-5R6N=P3

Active

Murata Electronics

FIXED IND

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 0.65

Description

General part information

1274AS Series

Inductor

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1274AS-H-5R6N=P3	1274AS Series

Current - Saturation (Isat)	-	3.5 - 15.3 A
Current Rating (Amps)	-	2.5 - 8.9 A
DC Resistance (DCR)	-	9.6 - 93.6 mOhm
DC Resistance (DCR)	-	7.7 mOhm
Height - Seated (Max)	-	0.197 in
Height - Seated (Max)	-	5 mm
Inductance	-	1.5 - 33 µH
Inductance Frequency - Test	-	100 kHz
Material - Core	-	Ferrite
Mounting Type	-	Surface Mount
null		-
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Nonstandard
Shielding	-	Shielded
Size / Dimension	-	10 mm
Size / Dimension	-	0.394 in
Size / Dimension	-	10 mm
Size / Dimension	-	0.394 "
Tolerance	-	20 - 30 %
Type	-	Wirewound, Drum Core

1274AS Series

FIXED IND 22UH 2.9A 68.1MOHM SMD

Part	Inductance	Mounting Type	Type	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Shielding	Package / Case	Tolerance	Inductance Frequency - Test	Current Rating (Amps)	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Saturation (Isat)	DC Resistance (DCR)
Murata Electronics 1274AS-H-220M=P3	22 µH	Surface Mount	Drum Core, Wirewound	68.1 mOhm	10 mm	0.394 in	10 mm	0.394 "	Shielded	Nonstandard	20 %	100 kHz	2.9 A	Ferrite	0.197 in	5 mm
Murata Electronics 1274AS-H-6R8N=P3	6.8 µH	Surface Mount	Drum Core, Wirewound	21.3 mOhm	10 mm	0.394 in	10 mm	0.394 "	Shielded	Nonstandard	30 %	100 kHz	5.4 A	Ferrite	0.197 in	5 mm	85 °C	-40 °C	7.5 A
Murata Electronics 1274AS-H-1R5N=P3	1.5 µH	Surface Mount	Drum Core, Wirewound		10 mm	0.394 in	10 mm	0.394 "	Shielded	Nonstandard	30 %	100 kHz	8.9 A	Ferrite	0.197 in	5 mm			15.3 A	7.7 mOhm
Murata Electronics 1274AS-H-4R7N=P3	4.7 ÁH	Surface Mount	Drum Core, Wirewound	13.5 mOhm	10 mm	0.394 in	10 mm	0.394 "	Shielded	Nonstandard	30 %	100 kHz	6.7 A	Ferrite	0.197 in	5 mm			9.5 A
Murata Electronics 1274AS-H-150M=P3	15 µH	Surface Mount	Drum Core, Wirewound	42.3 mOhm	10 mm	0.394 in	10 mm	0.394 "	Shielded	Nonstandard	20 %	100 kHz	3.9 A	Ferrite	0.197 in	5 mm			5.1 A

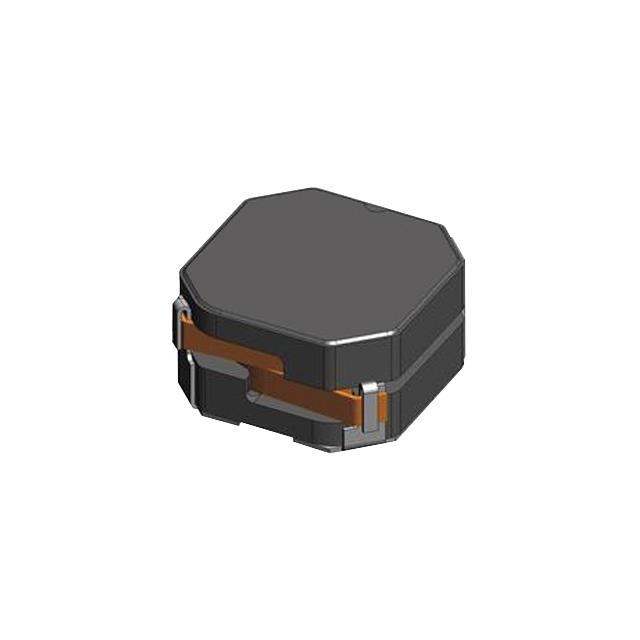

Murata Electronics 1274AS-H-5R6N=P3
Murata Electronics 1274AS-H-3R3N=P3	3.3 µH	Surface Mount	Drum Core, Wirewound	11.4 mOhm	10 mm	0.394 in	10 mm	0.394 "	Shielded	Nonstandard	30 %	100 kHz	7.4 A	Ferrite	0.197 in	5 mm			10.8 A
Murata Electronics 1274AS-H-100M=P3	10 µH	Surface Mount	Drum Core, Wirewound		10 mm	0.394 in	10 mm	0.394 "	Shielded	Nonstandard	20 %	100 kHz	4.4 A	Ferrite	0.197 in	5 mm			6.2 A
Murata Electronics 1274AS-H-2R2N=P3	2.2 µH	Surface Mount	Drum Core, Wirewound	9.6 mOhm	10 mm	0.394 in	10 mm	0.394 "	Shielded	Nonstandard	30 %	100 kHz	8 A	Ferrite	0.197 in	5 mm			12.6 A
Murata Electronics 1274AS-H-330M=P3	33 µH	Surface Mount	Drum Core, Wirewound	93.6 mOhm	10 mm	0.394 in	10 mm	0.394 "	Shielded	Nonstandard	20 %	100 kHz	2.5 A	Ferrite	0.197 in	5 mm			3.5 A
