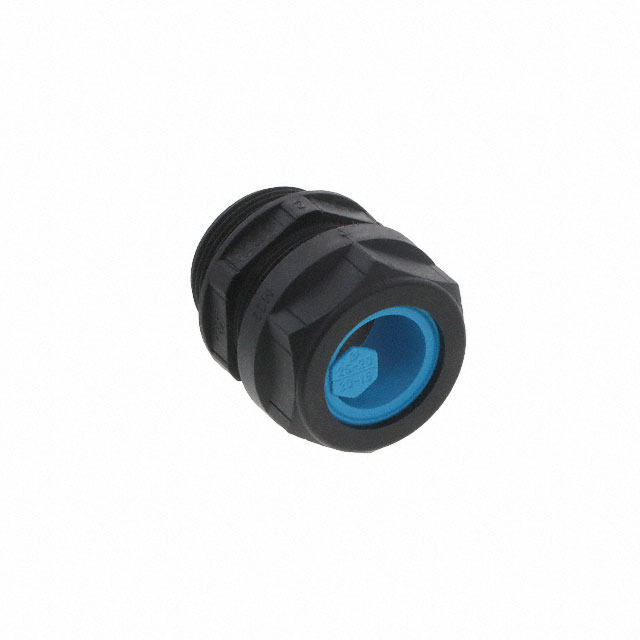

96574.1

Active

Pflitsch

CABLE FEED 20.07-24.89MM M32

Search across all available documentation for this part.

Active

Pflitsch

CABLE FEED 20.07-24.89MM M32

Technical Specifications

Parameters and characteristics for this part

Specification	96574.1

Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.98 "
Outside Cable Diameter (Max) [Max] [diameter]	24.89 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.79 "
Outside Cable Diameter (Min) [Min] [diameter]	20.07 mm
Panel Hole Size	1.26 in
Panel Hole Size	32 mm
Thread Length	7.87 mm
Thread Length	0.31 in
Thread Size	M32x1.5
Type	Cable Feedthrough

Part	Type	Material	Ingress Protection	Panel Hole Size	Panel Hole Size	Color	Thread Length	Thread Length	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max)	Includes
Pflitsch 96574.1	Cable Feedthrough	Polyamide (PA) Nylon	IP68 - Dust Tight Waterproof; NEMA 4X	1.26 in	32 mm	Black	7.87 mm	0.31 in	M32x1.5	0.79 "	20.07 mm	0.98 "	24.89 mm	100 °C	-20 C
Pflitsch 96574.7/15	Cable Feedthrough	Stainless Steel		1.26 in	32 mm	Silver			M32x1.5	0.591 "	15 mm	0.984 in		500 °C	-60 °C	25 mm	Sealing Ring
Pflitsch 96574.6	Cable Feedthrough	Brass Nickel Plated	IP68 - Dust Tight Waterproof; NEMA 4X	1.26 in	32 mm	Silver	7.87 mm	0.31 in	M32x1.5	0.79 "	20.07 mm	0.98 "	24.89 mm	300 °C	-40 °C		Sealing Ring
Pflitsch 96574.6/15	Cable Feedthrough	Brass Nickel Plated	IP68 - Dust Tight Waterproof; NEMA 4X	1.26 in	32 mm	Silver			M32x1.5	0.79 "	20.07 mm	0.98 "	24.89 mm	300 °C	-40 °C		Sealing Ring
Pflitsch 96574.7.1	Cable Feedthrough	Stainless Steel	IP68 IP69K	1.26 in	32 mm	Silver	8 mm	0.315 in	M32x1.5	0.591 "	15 mm	0.984 in		130 °C	-40 °C	25 mm
Pflitsch 96574.7	Cable Feedthrough	Stainless Steel	IP68 - Dust Tight Waterproof; NEMA 4X	1.26 in	32 mm	Silver	7.87 mm	0.31 in	M32x1.5	0.79 "	20.07 mm	0.98 "	24.89 mm	500 °C	-60 °C		Sealing Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Feedthrough Polyamide (PA), Nylon M32x1.5 Black
