FI-WE41P-HFE

Obsolete

JAE Electronics

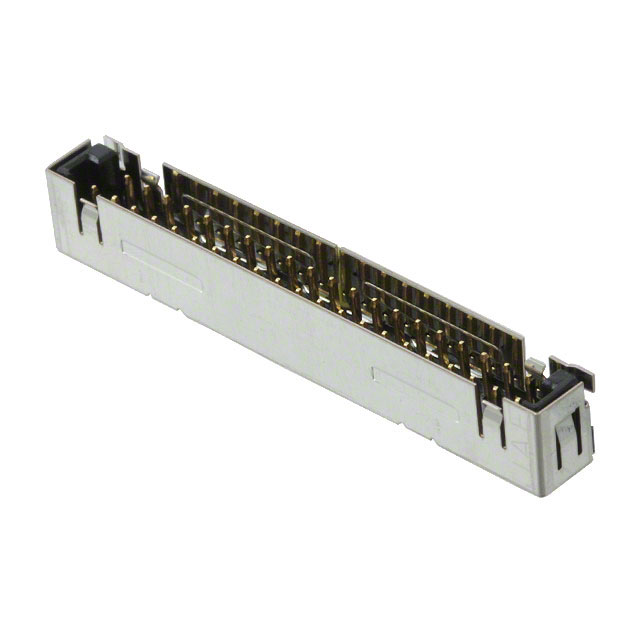

CONN HEADER SMD R/A 41POS 1.25MM

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN HEADER SMD R/A 41POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-WE41P-HFE

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin or Tin-Alloy
Contact Length - Mating [custom]	2.4 mm
Contact Length - Mating [custom]	0.094 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Friction Lock
Features	Solder Retention, Shielded
Insulation Color	Black
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	41
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating [x]	0.055 in
Row Spacing - Mating [x]	1.4 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

Part	Contact Finish - Post	Contact Material	Features	Contact Type	Shrouding	Insulation Material	Mounting Type	Style	Fastening Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Termination	Voltage Rating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Connector Type	Material Flammability Rating	Contact Finish - Mating	Contact Shape	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [custom]	Contact Length - Mating [custom]
JAE Electronics FI-WE41P-HFE	Tin or Tin-Alloy	Copper Alloy	Shielded Solder Retention	Male Pin	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Board to Cable/Wire	Friction Lock	2	-40 °C	80 C	3.7 mm	0.146 "	Solder	200 V	1 A	1.25 mm	0.049 in	41	All	Receptacle	UL94 V-0	Gold	Square	Black	0.055 in	1.4 mm	2.4 mm	0.094 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount, Right Angle 41 position 0.049" (1.25mm)
