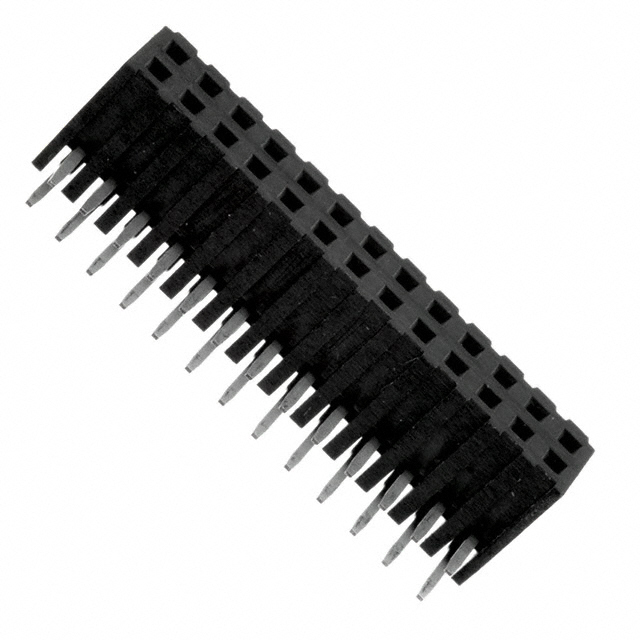

950426-5002-AR

Active

3M (TC)

CONN RCPT 26P 0.079 GOLD PCB R/A

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 26P 0.079 GOLD PCB R/A

Technical Specifications

Parameters and characteristics for this part

Specification	950426-5002-AR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.02 Ám
Contact Finish Thickness - Post	40 Áin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.191 in
Insulation Height	4.85 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder
Voltage Rating	1000 VDC

Part	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Termination	Insulation Color	Number of Positions Loaded	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Height	Insulation Height	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Contact Type	Connector Type	Contact Finish - Post	Contact Finish Thickness - Mating	Voltage Rating	Number of Positions	Material Flammability Rating
3M (TC) 950426-5002-AR	2	0.079 in	2 mm	Square	Thermoplastic	1.02 Ám	40 Áin	Push-Pull	Solder	Black	All	Copper Alloy	-40 °C	105 ░C	Gold	0.191 in	4.85 mm	Through Hole Right Angle	0.079 in	2 mm	0.118 in	3 mm	Female Socket	Receptacle	Tin	Flash	1000 VDC	26	UL94 V-0
3M (TC) 950426-8200-AR-TP	2	0.079 in	2 mm	Square	Thermoplastic	1.02 Ám	40 Áin	Push-Pull	Solder	Black	All	Copper Alloy	-40 °C	105 ░C	Gold	0.193 in	4.9 mm	Surface Mount Right Angle	0.079 in	2 mm			Female Socket	Receptacle	Tin	Flash	1000 VDC	26	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
