245656040010829+T

Active

KYOCERA AVX

5656 SERIES, FLOXY, 0.5MM PITCH,

Search across all available documentation for this part.

Active

KYOCERA AVX

5656 SERIES, FLOXY, 0.5MM PITCH,

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

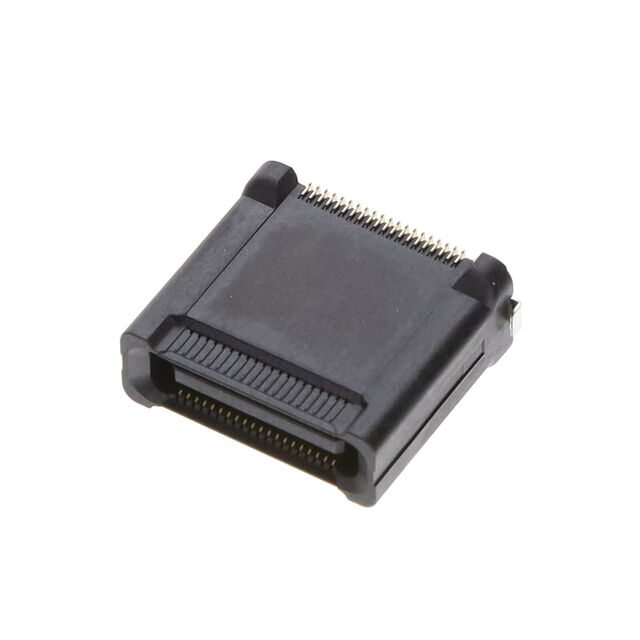

40 Position Connector Receptacle, Floating Surface Mount

Technical documentation and resources

Specification	245656040010829+T	245656 Series

Connector Type	Floating, Receptacle	Floating, Receptacle
Contact Finish	-	Gold
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board	-	0.508 in
Height Above Board	-	12.91 mm
Height Above Board [z]	14 mm	8 - 14 mm
Height Above Board [z]	0.551 "	0.315 - 0.551 "
Mated Stacking Heights	18 mm	18 mm
Mated Stacking Heights	-	17 mm
Mounting Type	Surface Mount	Surface Mount, Surface Mount, Right Angle
Number of Positions	40	40 - 60
Number of Rows	2	2
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in

Part	Connector Type	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Mated Stacking Heights [z]	Pitch [x]	Pitch [x]	Number of Rows	Features	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights
KYOCERA AVX 245656060009829+T	Floating, Receptacle	0.508 in	12.91 mm	Gold	Surface Mount	17 mm	0.5 mm	0.02 in	2	Board Guide, Solder Retention	60
KYOCERA AVX 245656040010829+T	Floating, Receptacle				Surface Mount		0.5 mm	0.02 in	2	Board Guide, Solder Retention	40	14 mm	0.551 "	18 mm
KYOCERA AVX 245656052101829+T	Floating, Receptacle			Gold	Surface Mount, Right Angle		0.5 mm	0.02 in	2	Board Guide, Solder Retention	52	8 mm	0.315 in
