SFSA064GM1AA4TO-I-QC-616-STD

Obsolete

SWISSBIT

SSD 64GB M.2 SLC SATA III 3.3V

SFSA064GM1AA4TO-I-QC-616-STD

Obsolete

SWISSBIT

SSD 64GB M.2 SLC SATA III 3.3V

Description Specifications Series Pricing CAD Documents

Description

General part information

SFSA064 Series

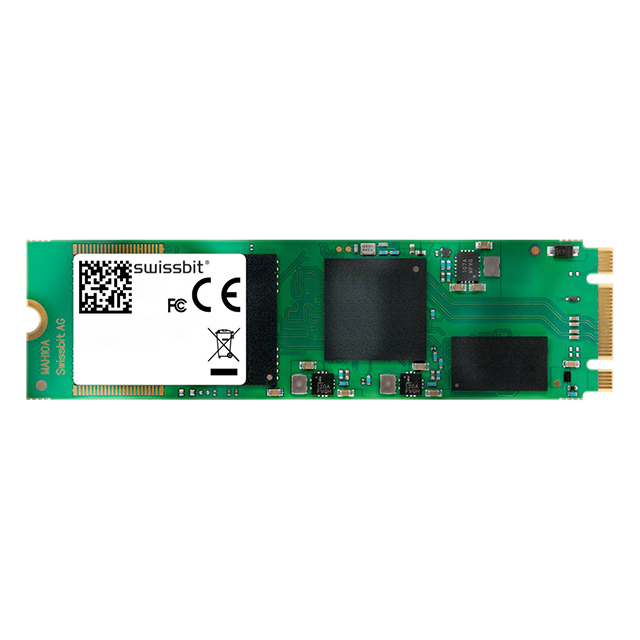

Solid State Drive (SSD) FLASH - NAND (SLC) 64GB SATA III M.2 Module 3.3V

Technical Specifications

Parameters and characteristics for this part

Specification	SFSA064GM1AA4TO-I-QC-616-STD

Current - Max	715 mA
Form Factor	M.2 Module
Memory Size	512 Gbit
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Size / Dimension Height	3.3 mm
Size / Dimension Length	80 mm
Size / Dimension Width	22 mm
Speed - Read	520 MB/s
Speed - Write	400 MB/s
Type	SATA III
Voltage - Supply	3.3 V

SFSA064 Series

Part	Speed - Write	Operating Temperature (Min)	Operating Temperature (Max)	Memory Size	Voltage - Supply	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Current - Max	Form Factor	Type	Memory Type	Speed - Read	Voltage - Supply	Weight
SWISSBIT SFSA064GM1AA4TO-I-QC-616-STD	400 MB/s	-40 °C	85 °C	512 Gbit	3.3 V	80 mm	3.3 mm	22 mm	715 mA	M.2 Module	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s
SWISSBIT SFSA064GM1AA4TO-C-QC-416-STD	400 MB/s	0 °C	70 °C	512 Gbit	3.3 V	60 mm	3.3 mm	22 mm	715 mA	M.2 Module	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s
SWISSBIT SFSA064GM1AA4TO-I-QC-416-STD	400 MB/s	-40 °C	85 °C	512 Gbit	3.3 V	60 mm	3.3 mm	22 mm	715 mA	M.2 Module	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s
SWISSBIT SFSA064GM3AA4TO-C-QC-626-STD	400 MB/s	0 °C	70 °C	512 Gbit	3.3 V	80 mm	3.58 mm	22 mm		M.2 Module	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s
SWISSBIT SFSA064GM3AA4TO-C-QC-426-STD	250 MB/s	0 °C	70 °C	512 Gbit	3.3 V	60 mm	3.58 mm	22 mm		M.2 Module	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s
SWISSBIT SFSA064GV3AA4TO-I-QC-226-STD	400 MB/s	-40 °C	85 °C	512 Gbit	3.3 V 5 VDC	54 mm	4 mm	39 mm		Slim-SATA	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s	3.3V 5V
SWISSBIT SFSA064GU3AA4TO-I-QC-226-STD	400 MB/s	-40 °C	85 °C	512 Gbit	3.3 V	2 in	3.5 mm	29.85 mm		mSATA	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s
SWISSBIT SFSA064GM3AA4TO-I-QC-626-STD	400 MB/s	-40 °C	85 °C	512 Gbit	3.3 V	80 mm	3.58 mm	22 mm		M.2 Module	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s
SWISSBIT SFSA064GV3AA4TO-C-QC-226-STD	400 MB/s	0 °C	70 °C	512 Gbit	3.3 V 5 VDC	54 mm	4 mm	39 mm		Slim-SATA	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s	3.3V 5V
SWISSBIT SFSA064GV1AA4TO-I-QC-216-STD	400 MB/s	-40 °C	85 °C	512 Gbit	5 VDC	54 mm	4 mm	39 mm	555 mA	Slim-SATA	SATA III	Solid State Drive (SSD) FLASH - NAND (SLC)	520 MB/s		0.353 oz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SFSA064GM1AA4TO-I-QC-616-STD | Datasheet
