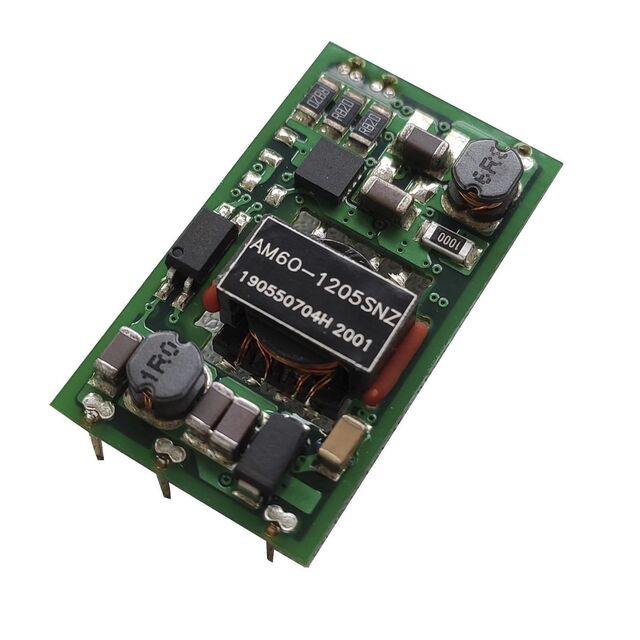

AM6O-1205SNZ

Active

aimtec

DC DC CONVERTER 5V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM6O-1205SNZ

Active

aimtec

DC DC CONVERTER 5V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM6O-1205SNZ

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1.2 A
Efficiency	81 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	6 W
Size / Dimension [x]	1.24 in
Size / Dimension [x]	31.6 mm
Size / Dimension [y]	18.1 mm
Size / Dimension [y]	0.71 in
Size / Dimension [z]	0.24 "
Size / Dimension [z]	6.1 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	500 V
Voltage - Output 1	5 V

AM6O Series

Part	Applications	Features	Power (Watts)	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Mounting Type	Efficiency	Voltage - Isolation	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]
aimtec AM6O-2403SNZ	ITE (Commercial)	Adjustable Output Remote On/Off	6 W	36 V	1.5 A	Through Hole	79 %	500 V	1	Isolated Module	85 °C	-40 °C	3.3 V	1.24 in	0.24 "	6.1 mm	18.1 mm	0.71 in	31.6 mm	18 V
aimtec AM6O-1215SNZ-M	ITE (Commercial)	Adjustable Output Remote On/Off	6 W	18 V	400 mA	Through Hole	86 %	500 V	1	Isolated Module	85 °C	-40 °C	15 V							9 V
aimtec AM6O-2405SNZ-LM	ITE (Commercial)	Adjustable Output Remote On/Off	6 W	36 V	1.2 A	Surface Mount	83 %	500 V	1	Isolated Module	85 °C	-40 °C	5 V	1.33 "	0.28 "	7 mm	19.1 mm	0.75 in	33.8 mm	18 V
aimtec AM6O-1205SNZ	ITE (Commercial)	Adjustable Output Remote On/Off	6 W	18 V	1.2 A	Through Hole	81 %	500 V	1	Isolated Module	85 °C	-40 °C	5 V	1.24 in	0.24 "	6.1 mm	18.1 mm	0.71 in	31.6 mm	9 V
aimtec AM6O-2412SNZ-L	ITE (Commercial)	Adjustable Output Remote On/Off	6 W	36 V	500 mA	Surface Mount	85 %	500 V	1	Isolated Module	85 °C	-40 °C	12 V	1.33 "	0.25 "	6.3 mm	18.1 mm	0.71 in	33.8 mm	18 V
aimtec AM6O-1215SNZ-L	ITE (Commercial)	Adjustable Output Remote On/Off	6 W	18 V	400 mA	Surface Mount	86 %	500 V	1	Isolated Module	85 °C	-40 °C	15 V	1.33 "	0.25 "	6.3 mm	18.1 mm	0.71 in	33.8 mm	9 V
aimtec AM6O-2403SNZ-M	ITE (Commercial)	Adjustable Output Remote On/Off	6 W	36 V	1.5 A	Through Hole	79 %	500 V	1	Isolated Module	85 °C	-40 °C	3.3 V							18 V
aimtec AM6O-1212SNZ-LM	ITE (Commercial)	Adjustable Output Remote On/Off	6 W	18 V	500 mA	Surface Mount	85 %	500 V	1	Isolated Module	85 °C	-40 °C	12 V	1.33 "	0.28 "	7 mm	19.1 mm	0.75 in	33.8 mm	9 V
aimtec AM6O-1212SNZ-L	ITE (Commercial)	Adjustable Output Remote On/Off	6 W	18 V	500 mA	Surface Mount	85 %	500 V	1	Isolated Module	85 °C	-40 °C	12 V	1.33 "	0.25 "	6.3 mm	18.1 mm	0.71 in	33.8 mm	9 V
aimtec AM6O-2405SNZ-M	ITE (Commercial)	Adjustable Output Remote On/Off	6 W	36 V	1.2 A	Through Hole	83 %	500 V	1	Isolated Module	85 °C	-40 °C	5 V							18 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.32
		5	$ 13.22
		10	$ 13.12
		25	$ 12.92
		50	$ 12.52
		100	$ 11.87
		150	$ 11.66

Description

General part information

AM6O Series

Isolated Module DC DC Converter 1 Output 5V 1.2A 9V - 18V Input
