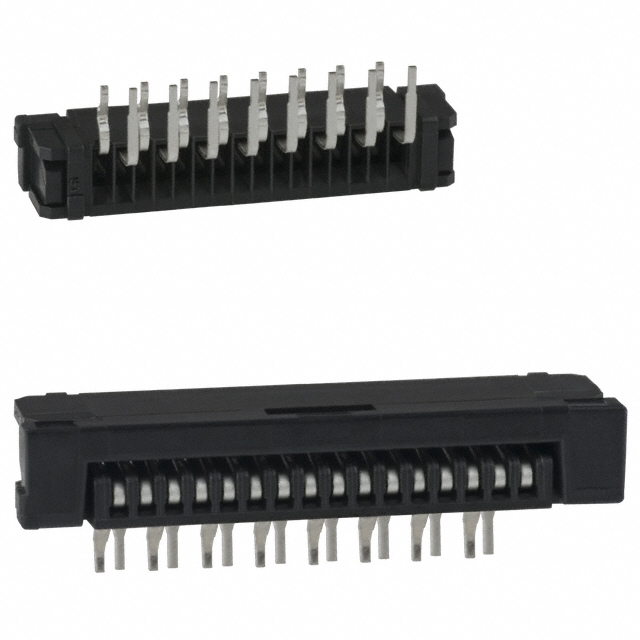

SLW16R-1C7

Active

Amphenol ICC (FCI)

CONN FFC FPC BOTTOM 16POS 1MM RA

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC FPC BOTTOM 16POS 1MM RA

Technical Specifications

Parameters and characteristics for this part

Specification	SLW16R-1C7

Actuator Color	Black
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin Alloy
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	4 mm
Height Above Board [z]	0.157 "
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Kinked Pin
Voltage Rating	100 V

Part	Flat Flex Type	Mounting Type	Actuator Color	Connector/Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness [z]	Pitch [x]	Pitch [x]	Contact Material	Material Flammability Rating	Number of Positions	Termination	Mating Cycles	Contact Finish	Height Above Board [z]	Height Above Board [z]	Cable End Type	Locking Feature	Actuator Material	Housing Material	Housing Color	Voltage Rating	Height Above Board	Height Above Board	FFC, FCB Thickness
Amphenol ICC (FCI) SLW16R-1C7	FFC FPC	Through Hole Right Angle	Black	Contacts Bottom	105 ░C	-55 °C	0.3 mm 0.33 mm	0.039 in	1 mm	Phosphor Bronze	UL94 V-0	16	Kinked Pin	20	Tin Alloy	4 mm	0.157 "	Straight Tapered	Slide Lock	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Black	100 V
Amphenol ICC (FCI) SLW16S-1C7LF	FFC FPC	Through Hole		Contacts Vertical - 1 Sided	85 °C	-55 °C		0.039 in	1 mm	Phosphor Bronze	UL94 V-0	16	Kinked Pin	20	Tin				Slide Lock	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Black	100 V	5.5 mm	0.217 in	0.33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Through Hole, Right Angle
