D2700U45X122XOSA1

Active

Infineon Technologies

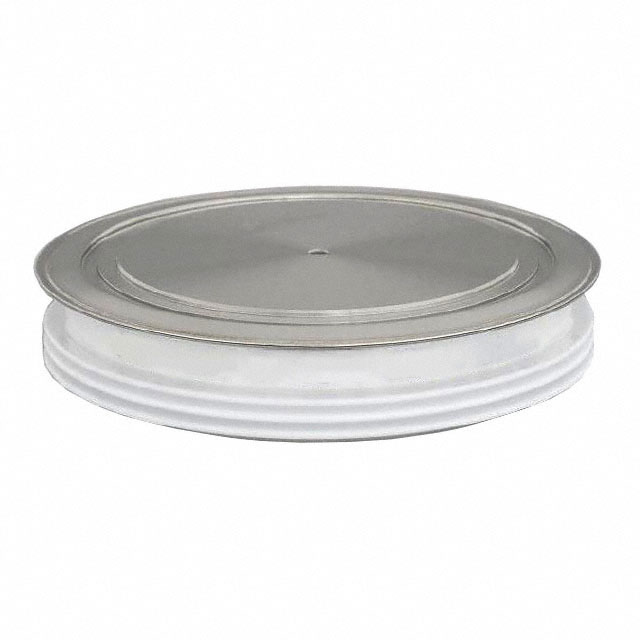

4500 V ULTRA-SOFT IGCT/IGBT FREEWHEELING DIODE CERAMIC DISCS WITH A 120 MM DIA AND A HEIGHT OF 26 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D2700U45X122XOSA1

Active

Infineon Technologies

4500 V ULTRA-SOFT IGCT/IGBT FREEWHEELING DIODE CERAMIC DISCS WITH A 120 MM DIA AND A HEIGHT OF 26 MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D2700U45X122XOSA1

Current - Average Rectified (Io)	2900 A
Current - Reverse Leakage @ Vr	150 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction	140 °C
Package / Case	DO-200AE
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	BG-D12026K-1
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	4500 V

D2700U45 Series

Part	Current - Reverse Leakage @ Vr	Technology	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Package / Case	Speed	Speed	Mounting Type	Operating Temperature - Junction
Infineon Technologies D2700U45X122XOSA1	150 mA	Standard	2900 A	4500 V	BG-D12026K-1	DO-200AE	Standard Recovery >500ns	200 mA	Chassis Mount	140 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1918.97
Newark	Each	1	$ 1944.85

Description

General part information

D2700U45 Series

IGCT/IGBT - Freewheeling Diodes 4500 V, 2700 A with 120 mm diameter in a ceramic housing. The ultra-soft freewheeling diodes for IGBTs build on our existingIGCT freewheeling diodefamily. These diodes are the perfect fit for modern IGBT applications such as HVDC voltage source converters and medium voltage drives.
