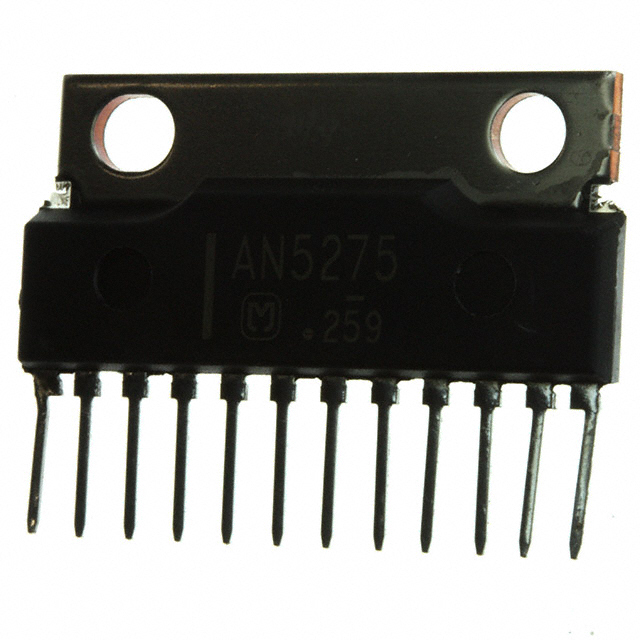

AN5275

Obsolete

Panasonic Industrial Automation Sales

CONSUMER CIRCUIT, BIPOLAR, PSFM12, SIP-12

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

CONSUMER CIRCUIT, BIPOLAR, PSFM12, SIP-12

Technical Specifications

Parameters and characteristics for this part

Specification	AN5275

Features	Thermal Protection, Short-Circuit, Mute
Max Output Power x Channels @ Load	15 W
Max Output Power x Channels @ Load [custom]	8 Ohm
Max Output Power x Channels @ Load [x]	2
Mounting Type	Through Hole
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-25 °C
Output Type	2-Channel (Stereo)
Package / Case	12-SIP + Tab
Supplier Device Package	12-SIL
Type	Class AB
Voltage - Supply [Max]	40 VDC
Voltage - Supply [Min]	10 VDC

Part	Mounting Type	Supplier Device Package	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Output Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]
Panasonic Industrial Automation Sales AN5275	Through Hole	12-SIL	Class AB	40 VDC	10 VDC	12-SIP + Tab	2-Channel (Stereo)	Mute Short-Circuit Thermal Protection	80 °C	-25 °C	2	15 W	8 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class AB 12-SIL
