Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZMCJF7L0R | Zm0 Series Series |
|---|---|---|
| Actuator Type | - | Round (Pin Plunger), Leaf, Lever, Simulated Roller |
| Circuit | - | SPDT |
| Current Rating (Amps) | - | 3 - 200 mA |
| Electrical Life | - | 15000 Cycles |
| Mounting Type | - | Through Hole, Through Hole, Right Angle |
| null | - | |
| Operating Force | - | 30 - 150 gf |
| Operating Position | - | 0.276 in |
| Operating Position | - | 7 mm |
| Operating Position | - | 8.4 - 10.5 mm |
| Operating Position | - | 0.33 - 0.413 in |
| Operating Temperature | - | -30 ░C |
| Operating Temperature | - | 85 °C |
| Switch Function | - | On-Mom |
| Termination Style | - | PC Pin |
| Voltage Rating - AC | - | 125 V |
| Voltage Rating - DC | - | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Zm0 Series Series

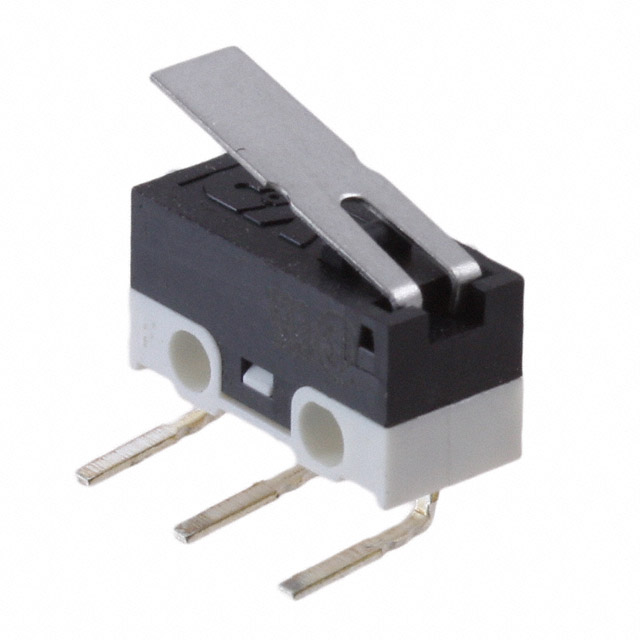

Mini Size Snap-acting Switch
...
| Part | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Switch Function | Circuit | Voltage Rating - DC | Mounting Type | Actuator Type | Electrical Life | Operating Position [x] | Operating Position [x] | Current Rating (Amps) | Voltage Rating - AC | Operating Position | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE ZMCHM9T23L | ||||||||||||||||
LITTELFUSE ZMCHM9T23T | ||||||||||||||||
LITTELFUSE ZMCHF7P0L | ||||||||||||||||
LITTELFUSE ZMCJF7P0R | ||||||||||||||||
LITTELFUSE ZMCHM9T23R | ||||||||||||||||
LITTELFUSE ZMCHM9L3K | ||||||||||||||||
LITTELFUSE ZMCHM9P0K | 90 gf | -30 ░C | 85 °C | PC Pin | On-Mom | SPDT | 60 VDC | Through Hole | Round (Pin Plunger) | 15000 Cycles | 0.276 in | 7 mm | 200 mA | |||
LITTELFUSE ZMCJM9L0T | ||||||||||||||||
LITTELFUSE ZMCJM9P0K | 150 gf | -30 ░C | 85 °C | PC Pin | On-Mom | SPDT | 60 VDC | Through Hole | Round (Pin Plunger) | 15000 Cycles | 0.276 in | 7 mm | 200 mA | |||
LITTELFUSE ZMCJF7L0R |
Description
General part information
Zm0 Series Series
Designers of PCB detection switches, communication devices and testing equipment turn to the ZM series from C&K because of their reputation for being reliable and long-lasting. The ZM series is a mini size snap-acting switch that features a reliable snap-acting mechanism, compact size and the long electrical and mechanical life that today’s applications require.
